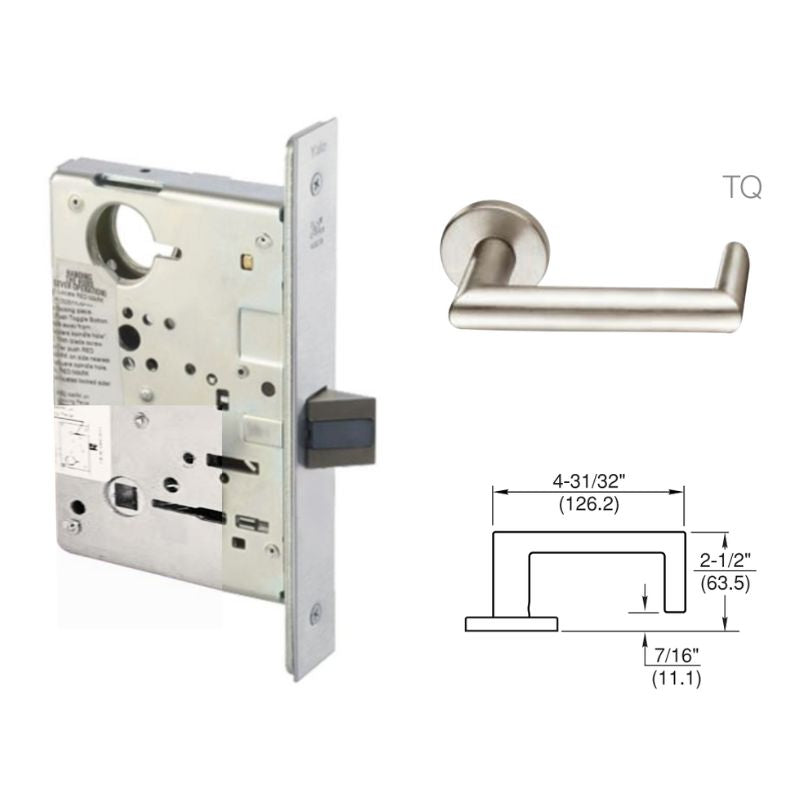

Accentra (Yale) TQR3-8801RL-626 Passage Or Closet Mortise Lock, Satin Chromium Plated Over Nickel

Technical Specs

Product Specs

Accentra (Formerly Yale) TQR3-8801RL-626 Passage Or Closet Mortise Lock, Reflections Thames Series TQ Lever Design, R3 Rose, Specify Handing, Satin Chromium Plated Over Nickel Finish

Accentra's TQR3-8801RL-626 model features a Thames Series TQ lever design, available in R3 rose with specified handing options. The satin chromium plated over nickel finish provides durability and a sleek look for passage or closet use.

• For doors that do not require locking

• Latchbolt retracted by knob/lever either side at all times

Reflections® Decorative Trim

Yale® 8800RL Mortise Locks are available with Reflections lever trim, a comprehensive line of highly stylized lever handles. Reflections lever handles are made from solid brass or stainless steel and can withstand years of abuse. Available in an array of finishes, these levers complement any wood grain or other door exterior. Each lever is hand-polished and specially designed for ergonomics and style.

Yale 8800 Series Mortise Locks

Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.

• ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
• UL-cUL: UL/cUL fire rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Stainless steel
• Backset: 2-3/4"
• Latchbolt: 3/4" stainless steel throw
• Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
• Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
• Reversibility: Field reversible handing
• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
• Finishes: Available in 17 finishes
• Warranty: 10 year mechanical
