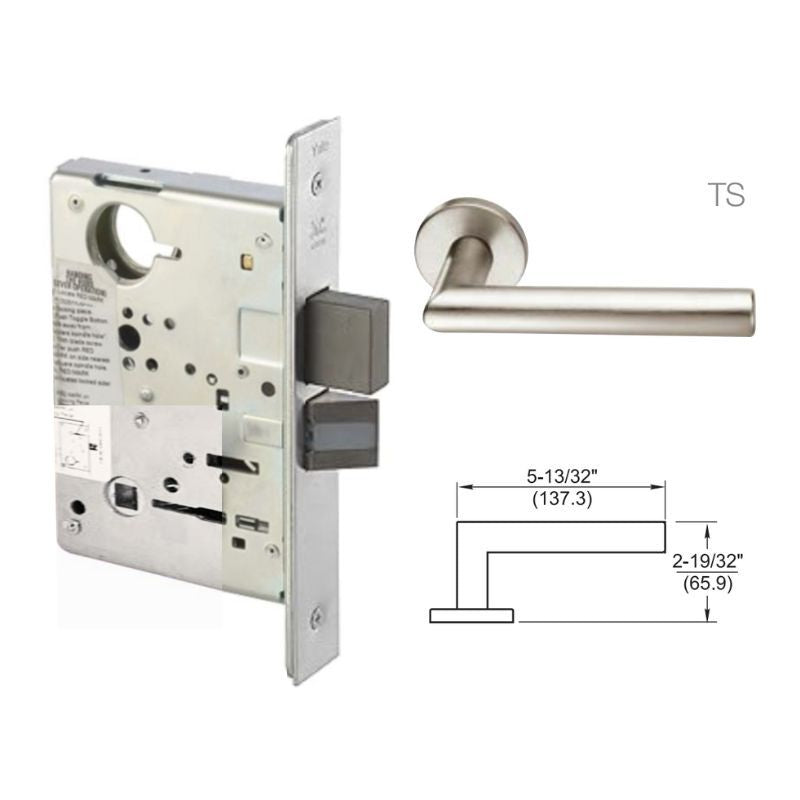

Accentra (Formerly Yale) TSR3-8802RL-626 Privacy Bath-Bedroom Mortise Lock Reflections Thames Series TS Lever Design, R3 Rose, Specify Handing, Satin Chromium Plated Over Nickel Finish

Accentra TSR3-8802RL-626 Privacy with Deadbolt Mortise Lock, featuring the Reflections Thames Series TS Lever Design with a R3 Rose, offers a professional and secure solution with a satin chromium plated finish over nickel. Please specify the desired handing for optimal installation.

• Latchbolt retracted by knob/lever either side

• Deadbolt operated by thumbturn inside

• When the deadbolt is projected, outside knob/lever is automatically locked

• Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.

• In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied


Reflections® Decorative Trim

Yale® 8800RL Mortise Locks are available with Reflections lever trim, a comprehensive line of highly stylized lever handles. Reflections lever handles are made from solid brass or stainless steel and can withstand years of abuse. Available in an array of finishes, these levers complement any wood grain or other door exterior. Each lever is hand-polished and specially designed for ergonomics and style.

Yale 8800 Series Mortise Locks

Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.

• ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
• UL-cUL: UL/cUL fire rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Stainless steel
• Backset: 2-3/4"
• Latchbolt: 3/4" stainless steel throw
• Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
• Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
• Reversibility: Field reversible handing
• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
• Finishes: Available in 17 finishes
• Warranty: 10 year mechanical
