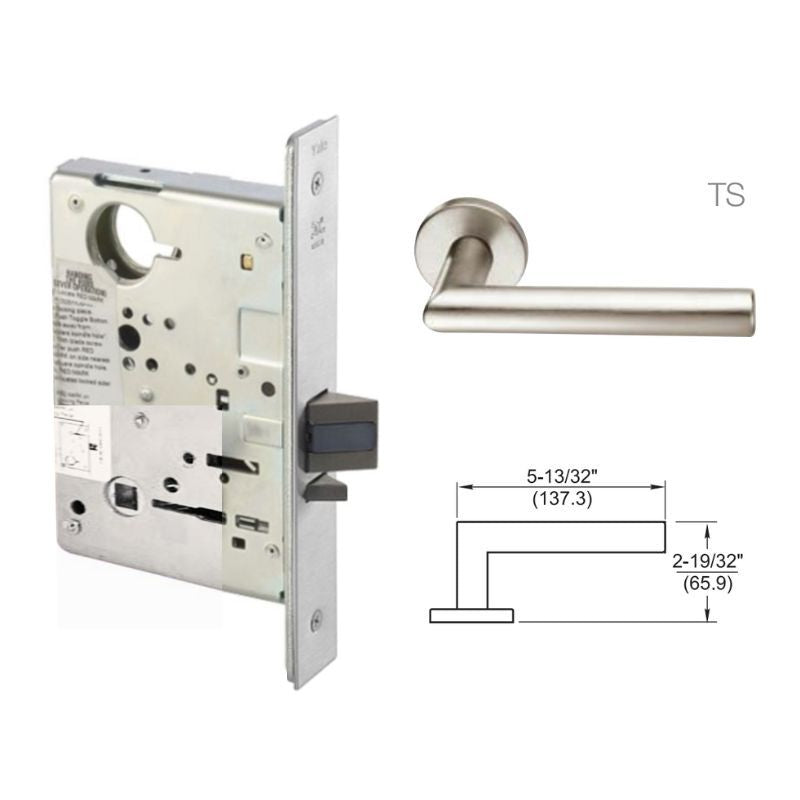

Accentra (Formerly Yale) TSR3-8808RL-626-LC Classroom Or Closet Mortise Lock, Reflections Thames Series TS Lever Design, R3 Rose, Less Cylinder, Specify Handing, Satin Chromium Plated Over Nickel Finish

The Accentra TSR3-8808RL-626 Mortise Lock, previously known as Yale, is designed for use in classrooms or closets. It features the Reflections Thames Series TS Lever Design, with an R3 Rose and a satin chromium plated over nickel finish. This lock is also customizable with regards to handing, and comes without a cylinder.

• For classroom, office, or utility room doors

• Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by key

• Inside knob/lever always active

• Latchbolt can be retracted by key when outside knob/lever is locked

• Operating inside knob/lever retracts latchbolt, but outside knob/lever remains locked

• Deadlocking latchbolt


Reflections® Decorative Trim

Yale® 8800RL Mortise Locks are available with Reflections lever trim, a comprehensive line of highly stylized lever handles. Reflections lever handles are made from solid brass or stainless steel and can withstand years of abuse. Available in an array of finishes, these levers complement any wood grain or other door exterior. Each lever is hand-polished and specially designed for ergonomics and style.

Yale 8800 Series Mortise Locks

Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.

• ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
• UL-cUL: UL/cUL fire rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Stainless steel
• Backset: 2-3/4"
• Latchbolt: 3/4" stainless steel throw
• Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
• Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
• Reversibility: Field reversible handing
• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
• Finishes: Available in 17 finishes
• Warranty: 10 year mechanical
