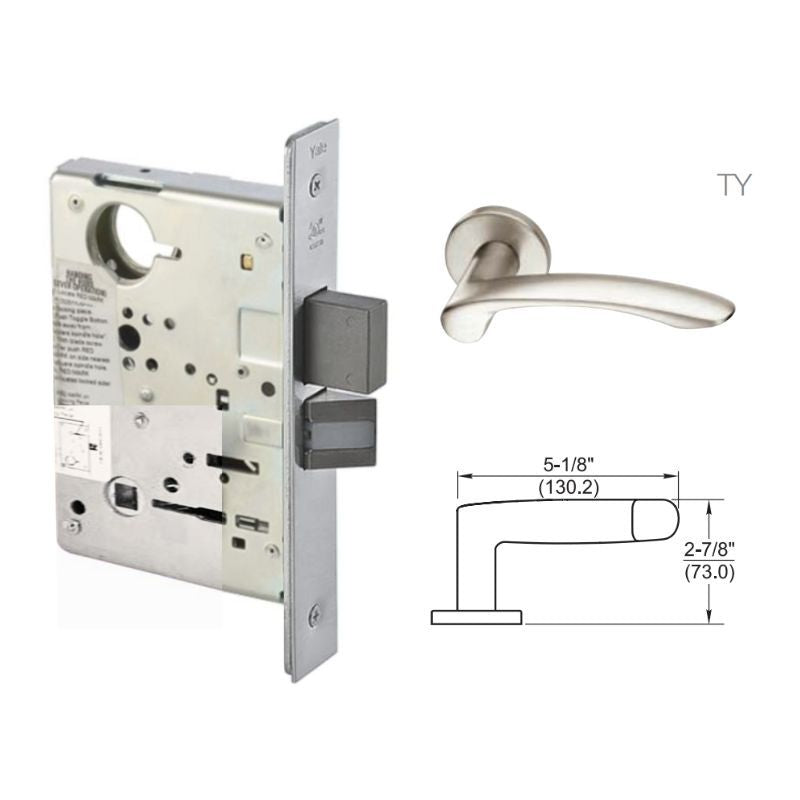

Accentra (Formerly Yale) TYR3-8822RL-626-LC Dormitory Or Exit Mortise Lock Reflections Victoria Series TY Lever Design, R3 Rose, Less Cylinder, Specify Handing, Satin Chromium Plated Over Nickel Finish

Accentra TYR3-8822RL-626-LC is a high-quality Dormitory or Exit Mortise Lock, featuring the elegant Reflections Victoria Series TY Lever Design, R3 Rose, and available in a stunning Satin Chromium Plated Over Nickel Finish. This lock allows you to specify the handing, and comes without a cylinder for added convenience.

• Latchbolt retracted by knob/lever either side

• Deadbolt operated by key outside and thumbturn inside

• When the deadbolt is projected, outside knob/lever is automatically locked

• Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt
• simultaneously, automatically unlocking outside knob/lever


Reflections® Decorative Trim

Yale® 8800RL Mortise Locks are available with Reflections lever trim, a comprehensive line of highly stylized lever handles. Reflections lever handles are made from solid brass or stainless steel and can withstand years of abuse. Available in an array of finishes, these levers complement any wood grain or other door exterior. Each lever is hand-polished and specially designed for ergonomics and style.

Yale 8800 Series Mortise Locks

Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.

• ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
• UL-cUL: UL/cUL fire rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Stainless steel
• Backset: 2-3/4"
• Latchbolt: 3/4" stainless steel throw
• Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
• Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
• Reversibility: Field reversible handing
• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
• Finishes: Available in 17 finishes
• Warranty: 10 year mechanical
