Description

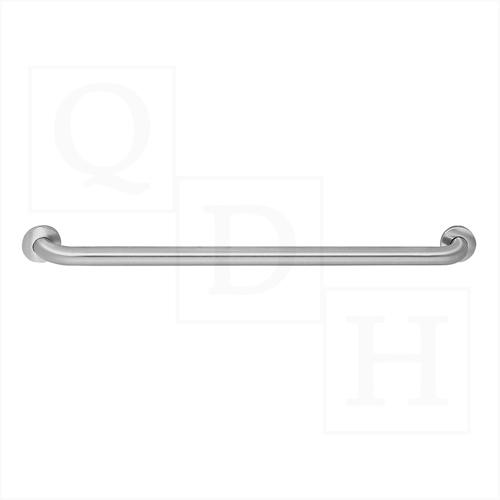

1 1/2" O.D. heavy duty stainless steel grab bar with concealed mounting. Pack of 10. 42"
Features
- 1-1/2" O.D
- Concealed Mounting
- Heavy Duty Stainless Steel
Specifications
| Materials: | Flanges: 3 1/8" dia. 13 gauge stainless steel Escutcheons: 22 gauge stainless steel. One-piece drawn construction with exposed surfaces in architectural satin finish. Snap over flanges to conceal mounting screws Tubing: 1 1/2" O.D. 18 gauge stainless steel, seamless construction with exposed surfaces in architectural satin finish. Bent ends of tubing pass thru the flanges and are welded for maximum strength. Intermediate supports are contour cut and joined by welding to form an integral part of the grab bar. All exposed welds ground and polished to blend. Mandrel bending process maintains uniform bar diameter. Return provides 1 1/2" standard safety clearance between wall and bar |
| Installation: | Verify all rough-in dimensions prior to installation. Secure to wall where adequate in-wall backing exists. Use bar as template to locate mounting holes. Drill holes and set anchors as appropriate. Mount grab bar and secure mounting screws. Snap escutcheons into place |
| Size: | 8120-001420: 1-1/2" OD X 42 |
| Weight: | 8120-001420-10: 37.67 lbs |
| Manufacturer: | Bradley |
Certifications
| ANSI: | Standard A117.1 Complaint |
| ADA/ABA: | Complies with Accessibility Guidelines for Buildings and Facilities (ADAAG) |
| UFAS: | Complies with Uniform Federal Accessibility Standard |
