Description

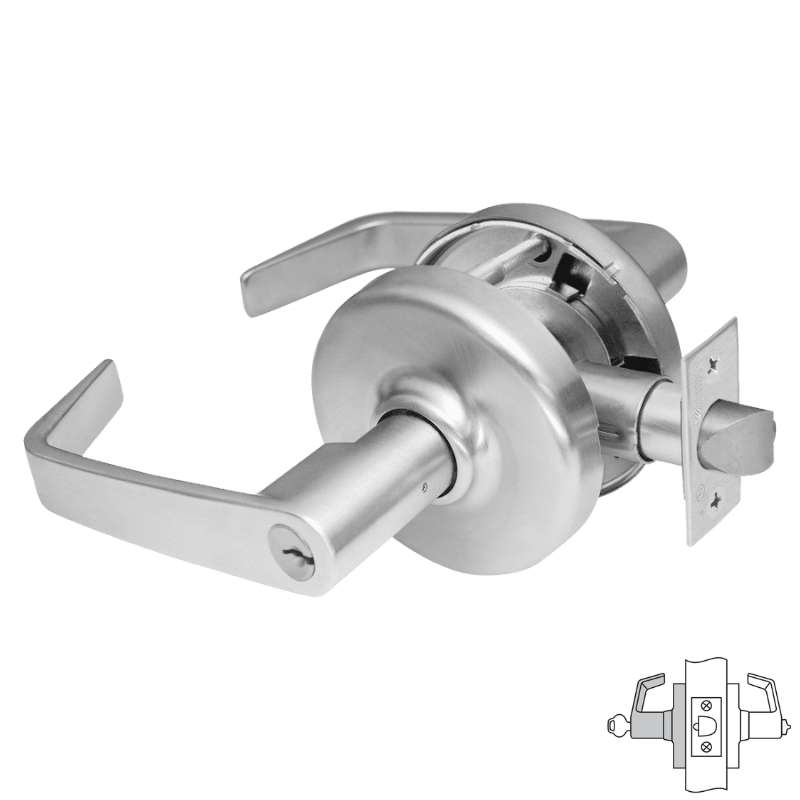

Corbin Russwin CL3851-NZD Entrance or Office Function Cylindrical Lever Lockset, Newport Lever, L4 Keyway, Keyed Random, [2] Keys, 2-3/4" Backset, 4-7/8" Strike, Grade 2, Non-Handed
The Corbin Russwin CL3851-NZD Cylindrical Lever Lockset is suitable for both entrance and office use. It features the Newport Lever, L4 Keyway, and a keyed random function with [2] keys. The lock has a 2-3/4" backset and 4-7/8" strike, making it a Grade 2 product that is non-handed.
Functions: Privacy, Entrance or Office, L4 Keyway, Keyed Random, [2] Keys
- Deadlocking latchbolt by lever on either side, except when the turn button locks the outside lever. (Lever handle is free-wheeling in locked position). Pushing the turn button locks the outside lever, requiring the use of a key outside to unlock.
- Turning the inside lever unlocks the outside lever.
- Pushing in and turning the button locks outside lever, requiring a key at all times. Turning the inside lever does not unlock the outside lever until the button is manually turned to the unlocked position.
- The inside lever is always free.
CL3800 Series Grade 2 Cylindrical Lever Locks
An ideal choice for standard commercial applications, the Corbin Russwin CL3810 Cylindrical Lever Lock provides a cost-effective Grade 2 standard-duty lockset that offers exceptional value and performance. Its compatibility with the CL3300 Series Extra Heavy-Duty Grade 1 and CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets reduces overall project costs without sacrificing functionality or durability.
Typical applications include: Interior offices; Closets; Multi-family housing; Restaurants; Retail complexes
Key Advantages:
- Lever Release™ for vandal resistance
- Solid cast levers
- ANSI/BHMA Grade 2 certification
- UL-cUL 3-hour fire rating
- Independent lever return springs
- Thrubolts on door for solid attachment
- Covers ANSI/BHMA door prep A156.115
Product Specs
| Manufacturer | Corbin Russwin |
| SKU | CL3851 NZD |
| Unit of Measure | Each |
| Origin | USA |
| Installation | Commercial |
| Fire Rating | 3 Hours {A} |
| Limited Warranty | 7 Years |
| Grade | Grade 2 |
Technical Specs
| Cylinder Type | L4 Keyway, Keyed Random |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Lever/Knob Design | NZ - Newport Lever |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Bore Hole Diameter | 2-1/8" |
| Rose/Escutcheon Design | D Rose |
| Handing | Not Handed |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Std. Strike Number | 217L13 |
| Door Thickness | 1-3/8" - 1-3/4" |
| Bolt Projection | 1/2" Latch |
| Std. Strike Type | ANSI Strike |
| Lever/Knob Design Family | Return Lever |
| Function | 51-Entrance or Office Lock |
| Std. Latch Number | 600F09 |
| Std. Latch Type | Spring Latch (Unguarded) |
| Function Family | Entry |
| ANSI Function | F109 - Entry/Office |
