Description

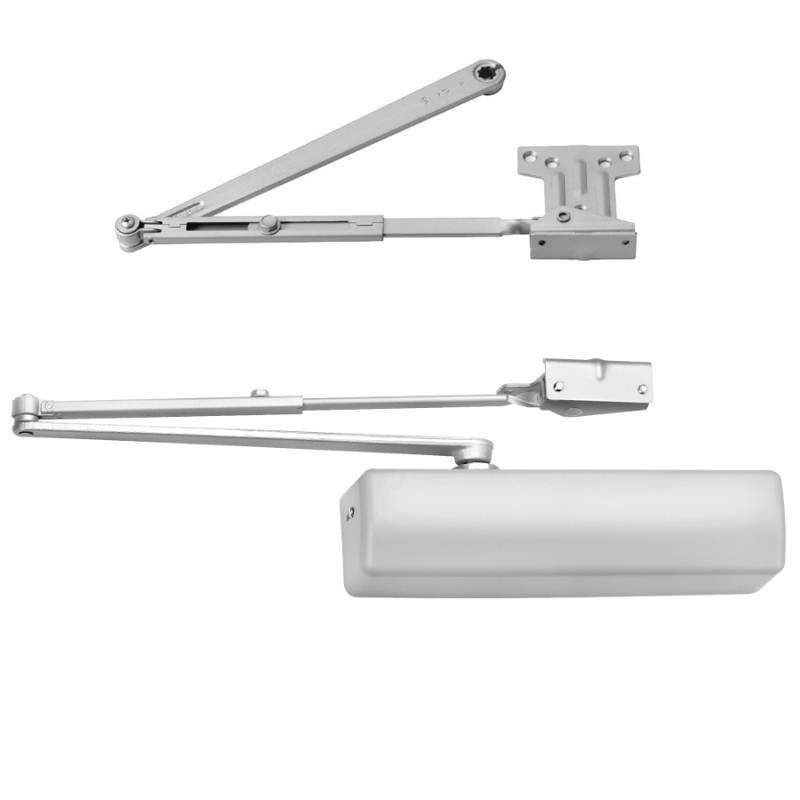

Corbin Russwin DC6210-M71-M54, Surface Door Closer, Delayed Action, Double Lever Arm with Parallel Arm Bracket, Push or Pull Side Mount, Size 1 to 6, Full Cover, Grade 1, Non-Handed
The Corbin Russwin DC6210-M71-M54 Surface Door Closer is equipped with a delayed action feature and can be mounted on either the push or pull side. Its double lever arm with PA bracket allows for easy installation and control, and it is available in size 1 to 6 with a full cover for added protection. This Grade 1 closer is suitable for both left and right-handed doors and meets industry standards for durability and security.
Fasteners Option: M54 Sex Nuts and Bolts (SNBs)
Delayed action valve option: M71 Delayed action preset for 20 seconds. Between 90° and 70° for all mountings.
Arm Options
-
Regular Arm used with regular arm (pull side) and top jamb (push side) mounting
- Parallel Arm Bracket mounted on the push side.
-
Non-hold open arm – combines regular arm with parallel arm mounting bracket.
- Hold open arm optional, specify closer x A1
DC6000 Series Door Closers
A variety of features makes this the choice for retrofitting, quick installation, and longevity.
Corbin Russwin offers a wide variety of arms, tracks, and special brackets to meet special header/ frame conditions. The small footprint and unobtrusive cover are additional advantages to a versatile line of closers.
- Spring Power DC6200 closers: multi-sized; fully adjustable sizes 1 through 6. DC6400 closers: sizes 1 through 6; half-size adjustability. For recommended sizes, see page 14.
- Handing Non-handed (with the exception of some arms and accessories).
- Body Cast-iron case with seamless cold-headed steel spring tube.
- Arm Standard: forged steel. Arm options pages 8-10.
- Spindle Heat-treated steel with a crowned gear set for increased efficiency.
- Piston 1-3/8" diameter; precision machined, heat-treated steel.
- Springs Chrome silicon wire.
- UL / ULC / UL10c Listed for fire and cycle requirements.
- 15 Million Cycles Witnessed and verified by UL
Product Specs
| Manufacturer | Corbin Russwin |
| SKU | DC6210 M71 M54 |
| Grade | Grade1 |
| Unit of Measure | Each |
| Installation | Commercial |
| Fire Rating | 3 Hours {A} |
| Limited Warranty | 25 Years |
| Base Material | Varies |
Technical Specs
| Handing | Non-Handed |
| Type | Surface |
| Mounting Group | Hydraulic |
| Mounting Location | Push or Pull Side |
| Mounting Style | Tri Mount |
| Hold Open | No |
| Back Check | Adjustable |
| Cold Weather Fluid | Yes |
| Special Rust Inhibitor | No |
| Delay | Yes |
| Degree Swing | 180 Deg. |
| Cover | Full |
| Drop Plate | Available |
| Through Bolts | Yes |
| Arm Type | Double Lever Arm, with PA Bracket |
| Cement Case | No |
| Screw Type | Self-Tapping |
| Voltage | Mechanical |
| Spacer | Available |
| Bracket | Available |
| Sealed Closer | Yes |
| Physically Handicap | Yes |
