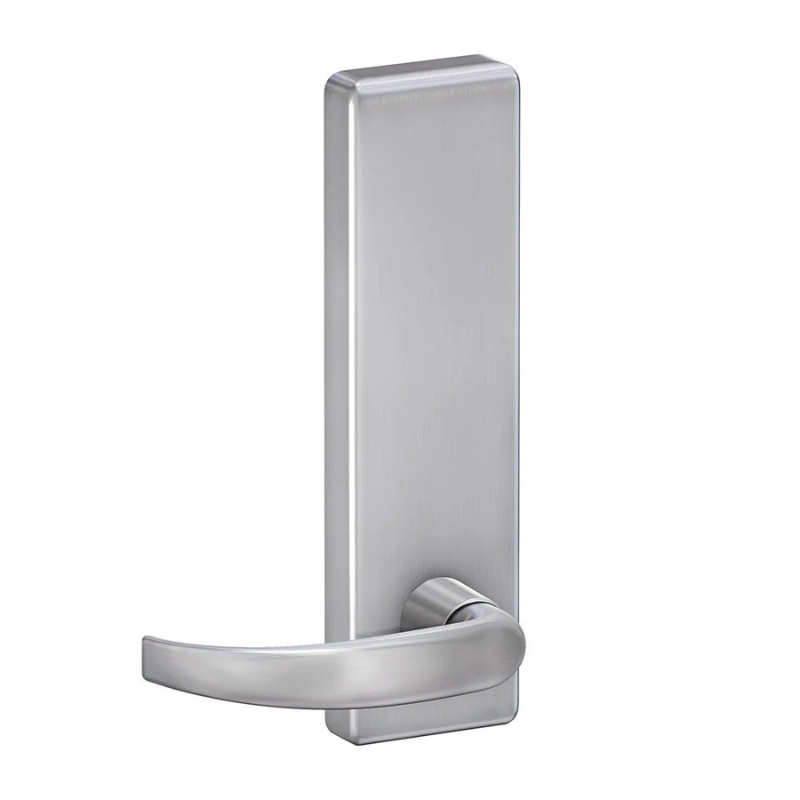

Falcon 510L-BE-A-US32D Exit Device Passage Function Lever Trim, Blank Escutcheon, Avalon Lever Design, For 25 Series, Grade 1, Field Reversible, 630 Satin Stainless Steel Finish

The Falcon 510L-BE-A-US32D is a passage function lever trim built for pairing with Falcon 25 Series exit devices. Featuring the Avalon (A) lever design and a blank escutcheon (BE), this trim delivers clean styling with reliable everyday operation. Passage function means the lever always retracts the latch, allowing free access from either side without keyed control. Constructed to meet ANSI/BHMA Grade 1 standards and finished in satin chrome (US32D), it offers durability for high-traffic commercial openings. The trim is field reversible, so a single unit adapts to both left- and right-hand doors, simplifying inventory and installation for schools, offices, and institutional buildings.

Features

• Passage function lever trim for continuous free access from either side.
• Avalon (A) lever design provides a modern, comfortable grip.
• Blank escutcheon (BE) offers a clean, uninterrupted appearance.
• Designed for compatibility with Falcon 25 Series exit devices.
• ANSI/BHMA Grade 1 rated for heavy commercial use.
• Field reversible to accommodate any door hand.
• Satin chrome (US32D) finish resists wear in busy environments.

Functional Details

As a passage function trim, the outside lever always retracts the latch, so the door can be opened from either side at any time. This configuration is ideal for openings that require unrestricted movement without locking control.

• Passage – Latch retracted by lever from either side at all times.

Included Components

This assembly includes the Avalon lever trim with a blank escutcheon plate and the mounting hardware needed to attach it to a compatible Falcon 25 Series exit device.
