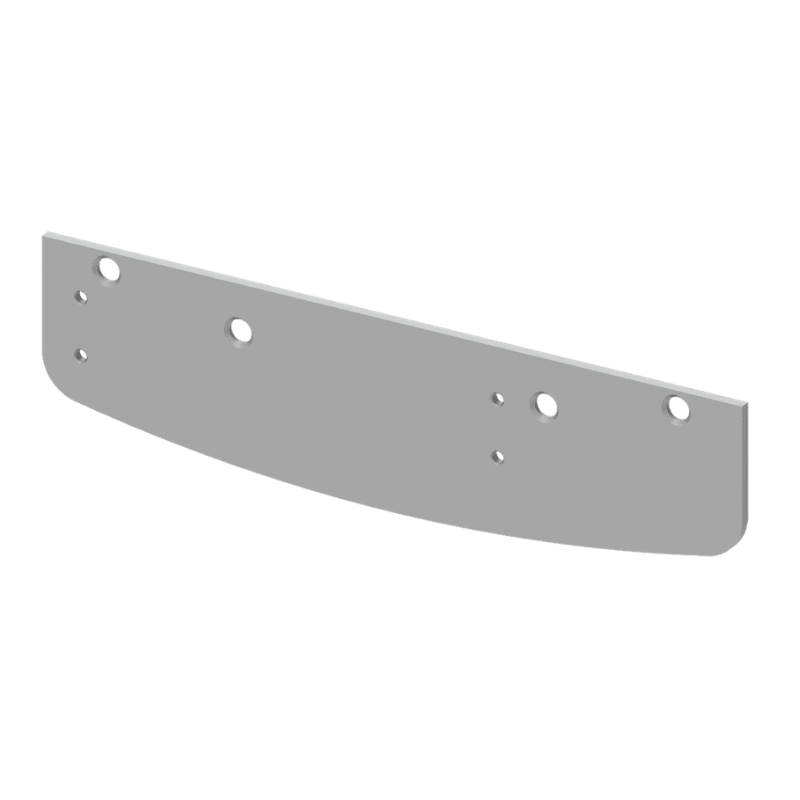

LCN 1460-18DS Drop Plate for 1460 Series, For Use With Designer Series Cover

The LCN 1460-18DS Drop Plate is a heavy-duty mounting adapter designed for use with LCN Closers 1460 Series surface-mounted door closers equipped with the Designer Series (DS) metal cover. This drop plate is required for hinge side (pull side) installations when the door top rail measures less than 2-1/2" (64 mm), and for top jamb applications when the head frame is less than 2-3/4" (70 mm). Requiring a minimum 1-1/2" top rail or 1-3/4" head frame, the 1460-18DS ensures proper closer alignment, secure reinforcement, and maintains ANSI/BHMA A156.4 Grade 1 performance in high-traffic commercial, institutional, healthcare, and government applications. Engineered for durability and code-compliant installations, this steel drop plate provides reliable mounting flexibility on narrow rail aluminum storefront and hollow metal doors.

Features

• Designed exclusively for use with LCN Closers 1460 Series closers equipped with Designer Series (DS) metal cover
• Accommodates both hinge side (pull side) and top jamb mounting conditions
• Required for hinge side mount where top rail is less than 2 1⁄2" (64 mm)
• Required for top jamb mount when head frame is less than 2 3⁄4" (70 mm)
• Requires minimum 1 1⁄2" (38 mm) top rail or 1 3⁄4" (44 mm) head frame minimum
• For use with Designer Series Metal Cover
