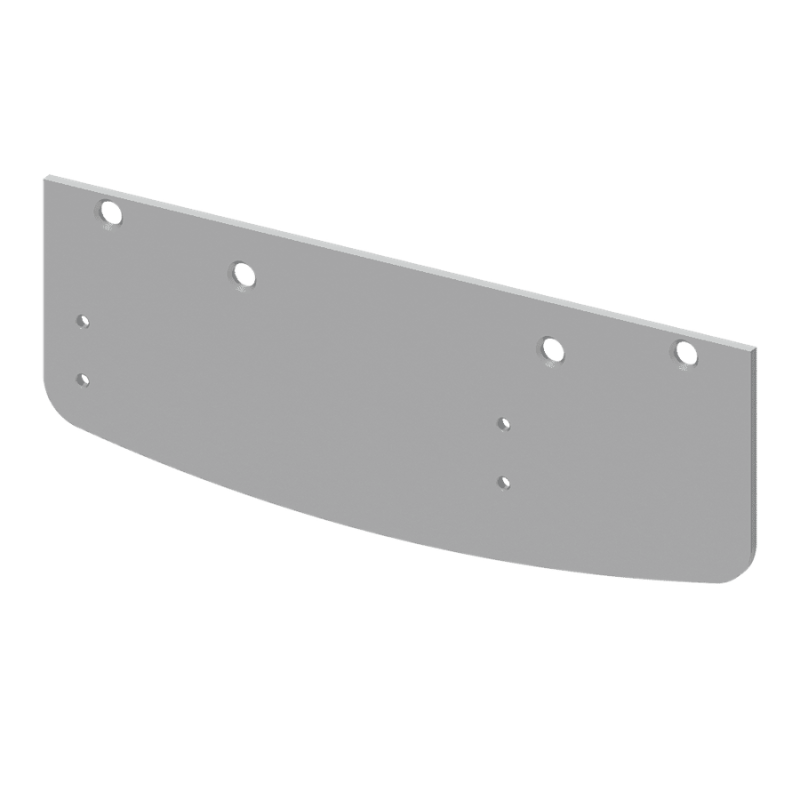

LCN 1460-18PADS Drop Plate, For 1460 Series, For Use With Parallel Arm and Designer Series Cover

The LCN 1460-18PADS Drop Plate is a heavy-duty mounting accessory designed specifically for use with LCN 1460 Series surface-mounted door closers in parallel arm (push side) applications. Required when the door’s top rail measures less than 4-3/8" (111 mm) from the stop, this drop plate provides proper reinforcement while accommodating a minimum 1-3/4" (44 mm) top rail. Engineered for compatibility with the LCN Designer Series (DS) metal cover, the 1460-18PADS ensures clean installation and maintains ANSI/BHMA Grade 1 performance when paired with the 1460 closer. Constructed from heavy-gauge cold-rolled steel and reversible for both right- and left-hand doors, this commercial-grade mounting plate is ideal for schools, hospitals, government buildings, and other high-traffic institutional openings requiring durable, code-compliant door closer installation.

Features:

• Required for parallel arm mounting where top rail is less than 4 3⁄8" (111 mm),
  measured from the stop
• Requires 1 3⁄4" (44 mm) minimum top rail
• For use with Designer Series Metal Cover
• Designed exclusively for use with LCN 1460 Series surface mounted closers.

• Specifically engineered to accommodate the Designer Series (DS) metal cover.

• Reversible design works for both Right-Hand (RH) and Left-Hand (LH) doors.
• Constructed from heavy-gauge cold-rolled steel for Grade 1 performance.
