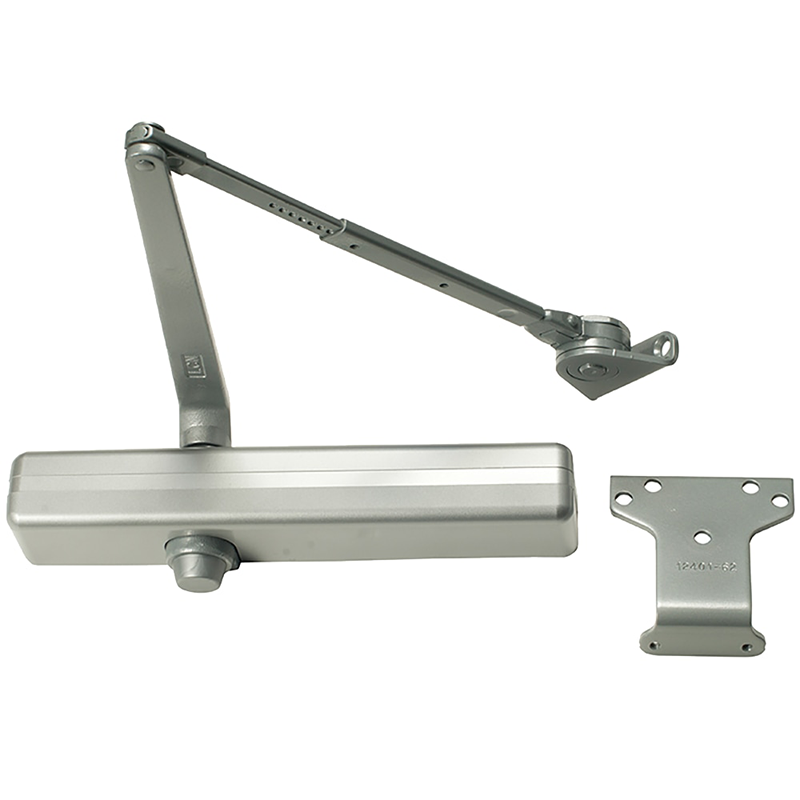

LCN 1461-HW/PA-CYLDEL Surface Door Closer, Hold Open Arm with Parallel Arm Shoe, Dely Action Cylinder, Slim Plastic Cover, 180 Deg. Swing, Non Handed, Grade 1
The LCN 1461-HW/PA-CYLDEL is equipped with a slim plastic cover and a high-quality hold open arm that features a parallel arm shoe and a delay action cylinder. With a 180 degree swing and non-handed design, this surface door closer is a top-grade option for your needs.
Features
- Standard 1460 series closer shipped with regular arm, a slimline plastic cover, and self-reaming and tapping screws
- Multiple cover options include; Standard (Slimline), Smooth Slimline (EC), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5'0" and exterior doors to 4'0"
-
Closer mounts hinge side, top jamb, and parallel arm on either right or left swinging doors
Specifications
| Materials: |
High-strength cast iron cylinder
One-piece forged steel piston
Heat-treated pinion
All-weather fluid eliminates seasonal adjustments
High efficiency, full complement, low friction bearings
Tamper-resistant regulating screws
Full rack and pinion hydraulic action
Quiet, low friction track and roller combination for all single lever arm closers |
| Mounting types: |
Hinge (Pull) Side
Top Jamb (Push)
Parallel Arm
|
| Cover: |
Plastic
Designer Series |
| Cylinder: |
Non-Handed
Accessibility
Non-Sized
Delayed Action
|
| Arm Functions: |
Hold Open Arm, Parallel Shoe |
| Finishes: |
Powder Coat
Plated |
| Warranty: |
10 year limited warranty |
| Manufacturer: |
LCN |
Certifications
| ADA: |
ADA Compliant |
| ANSI: |
A156.4 Grade 1 |
| UL: |
UBC 7.2 (1997) and UL 10 C Compliant |
