Description

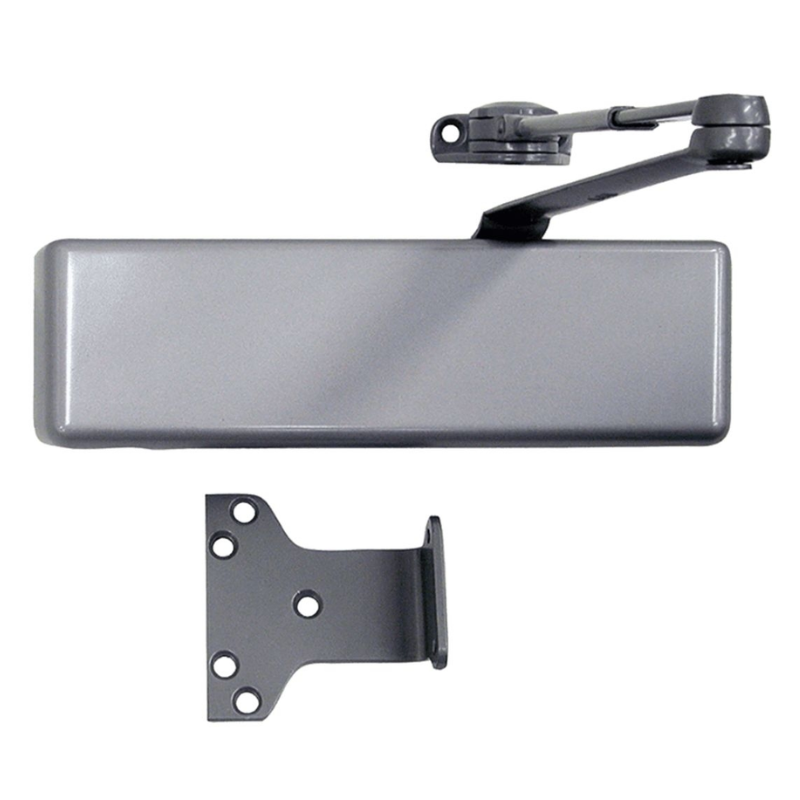

LCN 1461-HW/PA-FPC Surface Door Closer, Hold Open Arm with Parallel Arm Shoe, Full Plastic Cover, 180 Deg. Swing, Non Handed, Grade 1
The LCN 1461-HW/PA-FPC Surface Door Closer is a heavy-duty closer designed for demanding commercial openings that require reliable control and flexible installation. This Grade 1, non handed unit features a hold open arm with parallel arm shoe, a full plastic cover, and support for up to 180 degree swing where conditions allow. Built within the LCN 1460 Series, the 1461 closer is engineered for smooth operation and long service life on interior or exterior doors. Its surface-mounted design makes it a practical choice for high-traffic applications where durability, clean appearance, and dependable door control are essential.
Features
- Surface door closer design provides dependable overhead door control for commercial applications.
- 1461-HW/PA-FPC configuration includes a hold open arm with parallel arm shoe.
- Full plastic cover offers a cleaner finished appearance over the closer body.
- Non handed construction allows installation on either right or left hand doors.
- Supports up to 180 degree swing, templated based on arm and mounting conditions.
- Grade 1 construction is built for heavy-duty institutional and commercial use.
- Part of the LCN 1460 Series, known for forged main arm strength and durable performance.
Functional Details
The hold open arm function allows the door to remain in an open position at a selected point in the swing, which can be useful for convenience and traffic flow in appropriate non-rated applications. In this 1461-HW/PA-FPC configuration, the hold open arm is paired with a parallel arm shoe for a lower-profile mounting arrangement while maintaining controlled closing performance.
- Hold-open arms are not permitted to be used on fire door assemblies.
- Parallel arm mounted closers are mounted on the push side of the door with the arm parallel to the door face.
- Non-handed.
Arm Type Details
This model uses a hold open arm with parallel arm shoe, combining the convenience of hold-open functionality with the appearance and reduced projection of a parallel arm installation. Parallel arm mounting places the closer on the push side of the door and keeps the arm assembly more closely aligned with the door face.
Included Components
This closer includes the closer body, hold open arm, parallel arm shoe, and full plastic cover as part of the 1461-HW/PA-FPC configuration.
Product Specifications
| Manufacturer | LCN |
|---|---|
| Series | 1460 Series |
| Model | 1461-HW/PA-FPC |
| SKU | 1461-HW/PA-FPC |
| Product Type | Surface Door Closer |
| Arm Type | Hold Open Arm with Parallel Arm Shoe |
| Cover Type | Full Plastic Cover |
| Handing | Non Handed |
| Grade | Grade 1 |
| ANSI Number | A156.4 |
| UL Listing Type | UL and cUL listed for self-closing doors without hold-open |
| Unit of Measure | Each |
| Door Swing | 180 Deg. Swing |
| Application | Interior or exterior doors |
| Limited Warranty | 30 years |
Technical Specifications
| Closer Size | Adjustable size 1-5 |
|---|---|
| Door Width Interior | Up to 5'0" |
| Door Width Exterior | Up to 4'0" |
| Mounting | Regular, top jamb, parallel arm |
| Maximum Opening | 180° |
| Handing | Non-handed |
| Arm Function | HW hold open arm |
| Parallel Arm Shoe | PA shoe |
| Cover | FPC full plastic cover |
| Valve Control | Separate regulating valves for general speed, latch speed, and backcheck |
| Spring Power | Full rack-and-pinion, cast iron body |
| Standards | ANSI A156.4, Grade 1 |
| UL Condition | Self-closing doors without hold-open |
| Series | 1460 Series |
