Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push Side |
| Mounting Style | Parallel Arm |
| Hold Open | No |
| Closer Size | 1 to 6 |
| Arm Type | Parallel Arm Dead Stop |
| Hand | Non-Handed |
| Degree Swing | 110 Deg. |
| Stop | Dead Stop |
| Back Check | Adjustable |
| Delay | Yes |
| Cover | Plastic |
| Screw Type | Self Tapping |
| Through Bolts | No |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
Product Specs
| Manufacturer | LCN |
| SKU | 4041DEL-CUSH 689 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Cush Arm |
| Base Material | Varies |
| UL Listing Type | UL 10C |
| ANSI Number | A156.4 |
| BAA Qualified | Yes |
| Limited Warranty | 30 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Finish | |
| Finish | 689 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |

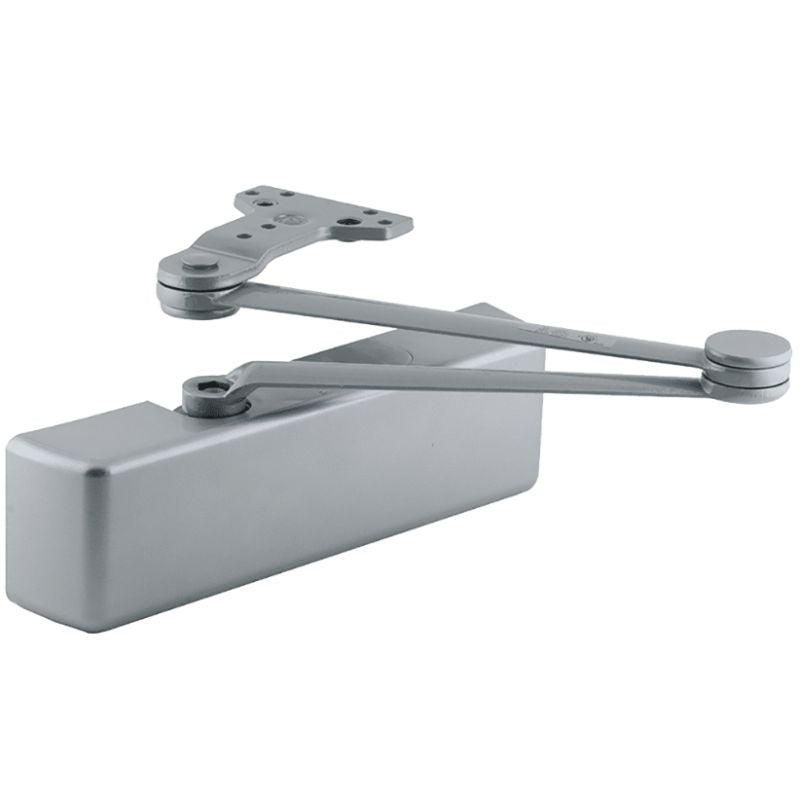

LCN 4041DEL-CUSH 689, Grade 1 Surface Door Closer, Cush Arm, Push Side Mounting, 110 Degree Swing, Adjustable Size 1-6, Plastic Cover, Delayed Action, Non Handed, Aluminum Painted Finish
The LCN 4041DEL-CUSH 689 is a Grade 1 surface door closer designed for push side mounting and featuring a cushioned arm. With a 110 degree swing and an adjustable size 1-6, this closer also includes a plastic cover, delayed action function, and non-handed operation, all in a sleek aluminum painted finish.
Delay action for 4040XP incorporates standard 4041 cylinder.
4040XP Series Surface Mounted Closers
The 4040XP is LCN’s most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
The patented green dial on the 4040XP makes spring adjustments fast, easy and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance through every season. High-traffic doors call for heavy-duty closers – closers that won't let you down no matter how many people go through the door or how hard they kick, push or slam against it.
- Cast iron cylinder with full-complement bearing
- 3/4" diameter piston
- Double-heat treated steel pinion journal
- All-weather Liquid X fluid
- LCN patented Green Dial spring force indicator
- 30-year warranty
- Universal non-handed
- Peel-n-stick template and snap-on cover
- Adjustable spring sizes 1-6
