LCN 6440XP COMPACT Low Energy Surface Mounted Electrohydraulic Door Operator, Double Lever Arm with PA Bracket, Push or Pull Side Mounted

Technical Specs

Product Specs

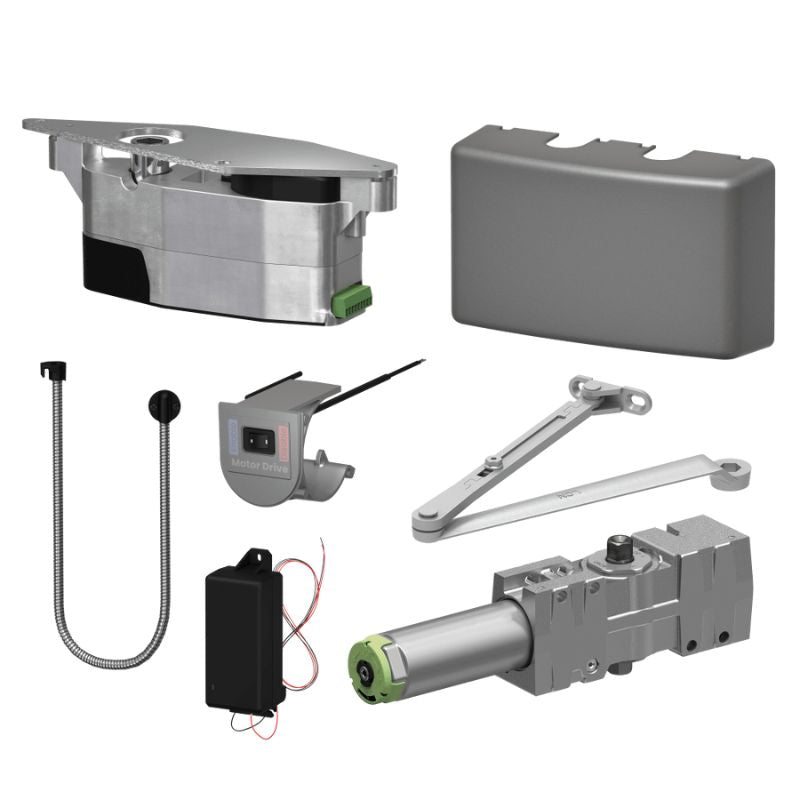

LCN 6440XP COMPACT Low Energy Surface Mounted Electrohydraulic Door Operator, Double Lever Arm with PA Bracket, Push or Pull Side Mounted, Tri Mount, Plastic Cover

The LCN 6400 COMPACT™ Series low-energy operator offers a straightforward and cost-effective method for facilities to automate additional openings, facilitating touchless access and accessible operation. Its unique modular design enables the integration of an existing LCN 4040XP mechanical closer, enhancing sustainability through reuse. The electrified module attaches easily using a mounting plate and just four screws, which then activates the mechanical closer to open the door. This simplified approach significantly reduces the costs, labor, and complexity involved in automating a doorway, making it an ideal solution for a wide range of settings.

• 24V input for safe door-mount applications
• Configurable power input to allow for simple wall plug-in or external power supply
• Compact user interface for electronic feature adjustments
• Simple calibration set-up with visible and audible feedback
• Adjustments via mechanical closer to meet closing force preferences
• Power boost to overcome interior stack pressure and allow for lower spring settings
• Compatible with 3 different 4040XP mounting configurations
• Fire input to deactivate actuation upon signal
• Dedicated input for actuation signal (hardwired or wireless receiver)
• Certified to UL 10C, UL 325 and UL 228
• Certified to ANSI Standard A156.19
• Compliant with ANSI Standard A117.1
