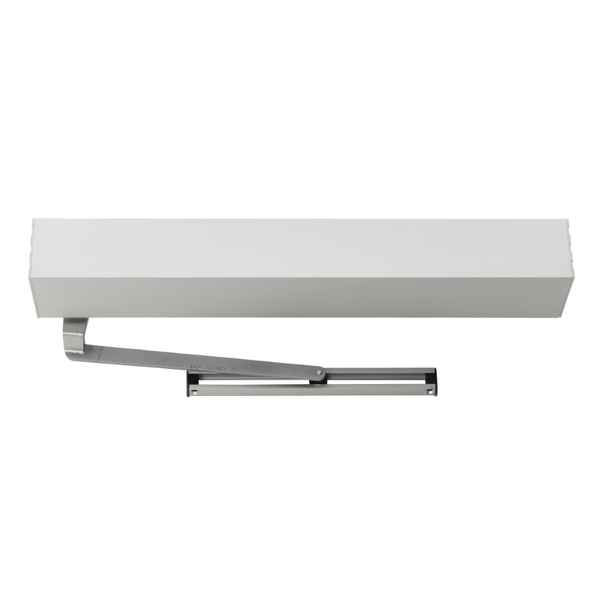

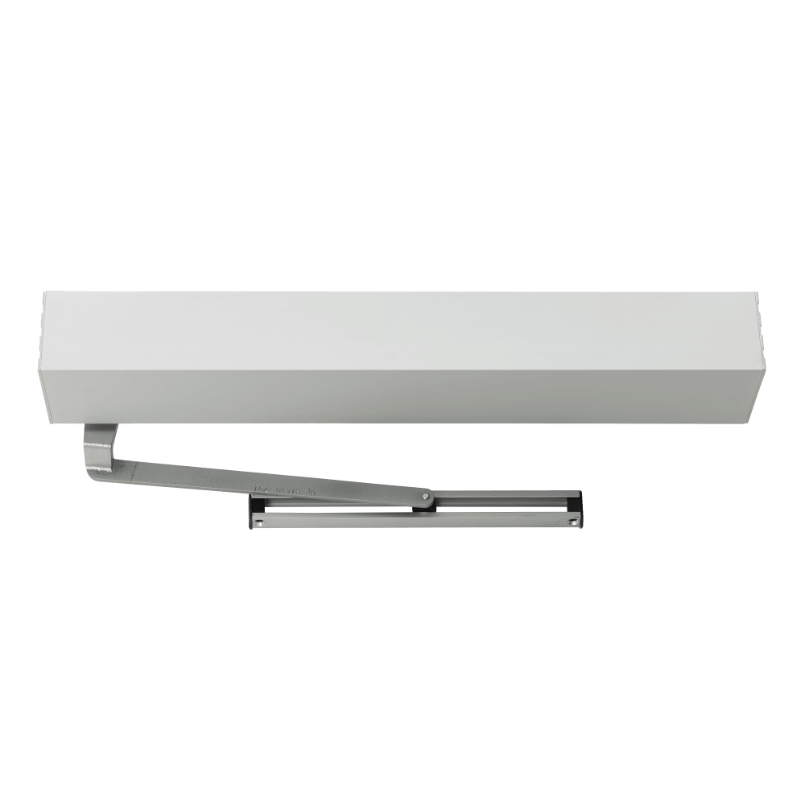

LCN 9531IQ-STD-COV-36 Electromechanical Swing Door Operator, Single Door, Pull Side Surface Mounting, 36" Door Width, Slide Track Arm, Standard, 90 Deg. Swing, Metal Cover, Machine Screws, Grade 1

The LCN 9531IQ-STD-COV-36 is a heavy-duty electromechanical swing door operator designed for single-door applications with pull side surface mounting and a slide track arm. Built to ANSI/BHMA A156.19 standards and Grade 1 performance requirements, this operator is suited for high-traffic commercial openings that need reliable low-energy automatic operation. The unit is configured for a 36-inch door and standard 90-degree swing, with a durable metal cover and machine screw mounting. As part of the 9530IQ Series, it is engineered to deliver smooth door control, dependable accessibility performance, and compatibility with a wide range of activation and safety accessories.

Features

• Electromechanical low-energy operator designed for single-door automatic swing applications.

• Pull side surface-mounted configuration uses a slide track arm for controlled door movement.

• Configured for a 36-inch door and standard 90-degree swing operation.

• Meets ANSI/BHMA A156.19 requirements for power assist and low-energy power-operated doors.

• Grade 1 construction supports demanding commercial and institutional openings.

• Metal cover helps protect internal components in high-use environments.

• Machine screw mounting provides secure installation.

• Suitable for accessibility-focused openings requiring smooth, controlled automatic operation.

Functional Details

The 9531IQ functions as a low-energy automatic swing door operator that opens and closes the door through an electromechanical drive system. In a pull side surface-mounted application, the slide track arm provides controlled movement while maintaining a clean installation profile, making it a practical choice where overhead space and door control are important.

• Electromechanical automatic operator

• Designed for single door applications

• Meets ANSI/BHMA A156.19

• Non-handed

• Push or pull side mounting

Arm Type Details

This model uses a slide track arm, which is commonly selected for pull side surface-mounted installations where a more compact arm arrangement is preferred. The slide track helps guide the door through its opening cycle while reducing arm projection compared to a traditional articulated arm.

Included Components

This configuration includes the operator with standard control setup, metal cover, slide track arm, and machine screw mounting package for the specified single-door application.
