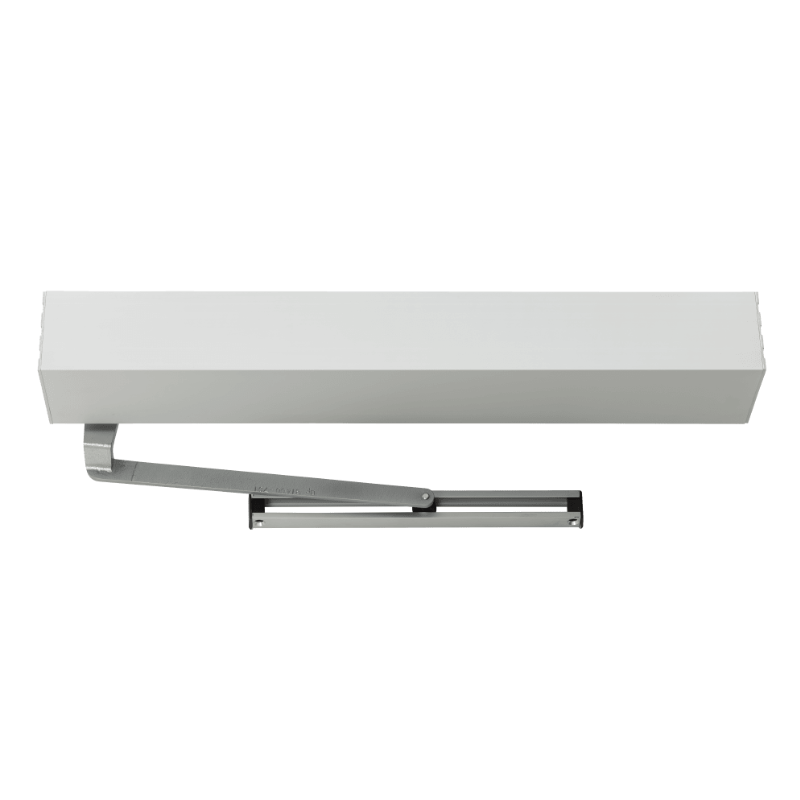

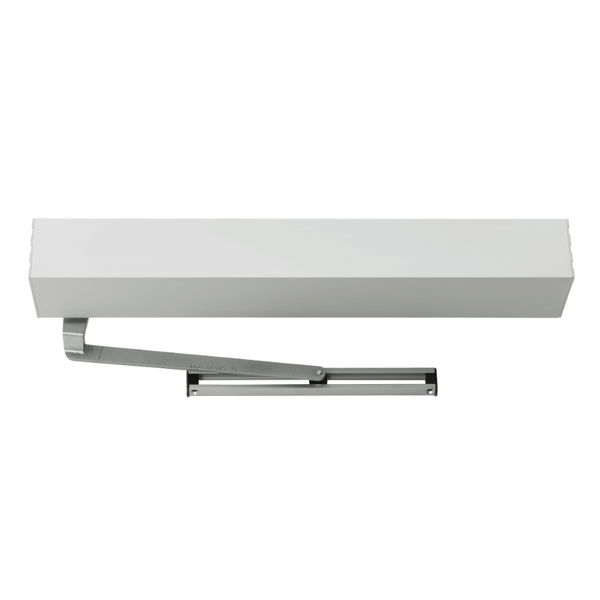

LCN 9531IQ-STD-COV-40-628 Electromechanical Swing Door Operator, Single Door, Pull Side Surface Mounting, 40" Door Width, Slide Track Arm, Standard, 90 Deg. Swing, Metal Cover, Machine Screws, Grade 1, Aluminum Anodized Finish

The LCN 9531IQ-STD-COV-40 is a heavy-duty electromechanical swing door operator designed for single-door applications with pull side surface mounting. Built as part of the 9530IQ Series, this Grade 1 operator is configured with a slide track arm, standard function, metal cover, and 90-degree swing for controlled, dependable operation in commercial openings. It is engineered for interior use on doors up to 40 inches wide and is well suited for facilities that need low-energy automatic operation with reliable performance, clean surface-mounted installation, and compatibility with activation and safety accessories commonly used in code-compliant automatic door systems.

Features

• Electromechanical automatic operator for single-door, pull side surface-mounted applications.
• Configured with a slide track arm for controlled door movement and a clean, compact installation profile.
• Standard function model designed for low-energy automatic swing door operation.
• Supports doors up to 40 inches wide in this specific configuration.
• Factory-equipped with a metal cover for durability in commercial environments.
• Provides a 90-degree swing range for typical access and egress openings.
• ANSI/BHMA A156.19 compliant when properly installed and adjusted.
• UL listed for use on labeled fire and smoke barrier doors.
• Grade 1 construction for demanding institutional and commercial applications.
• Non-handed design allows flexible installation and field application planning.

Functional Details

The standard function on the 9531IQ is intended for low-energy automatic door operation, opening the door after activation and then closing it in a controlled manner. This type of operator is commonly used where automatic accessibility is required without the higher opening speeds associated with full-power systems. Proper activation, safety devices, and field adjustment are important to ensure compliant performance.

• Electromechanical operator
• Single door operator
• Non-handed
• Interior doors
• Surface mounted
• Pull side mount
• Slide track arm
• Push ‘N Go
• Power Boost
• On-board power supply for accessories

Arm Type Details

This model uses a slide track arm, which is commonly selected for pull side mounting where a lower-profile arm arrangement is preferred. The slide track design helps manage the operator’s motion through the opening cycle while maintaining a more streamlined appearance than a traditional articulated arm.

Included Components

This operator is supplied with a standard function configuration, metal cover, and machine screw mounting package as indicated by the product configuration. The unit is designed to work with compatible activation and safety accessories supported by the 9530IQ Series platform.
