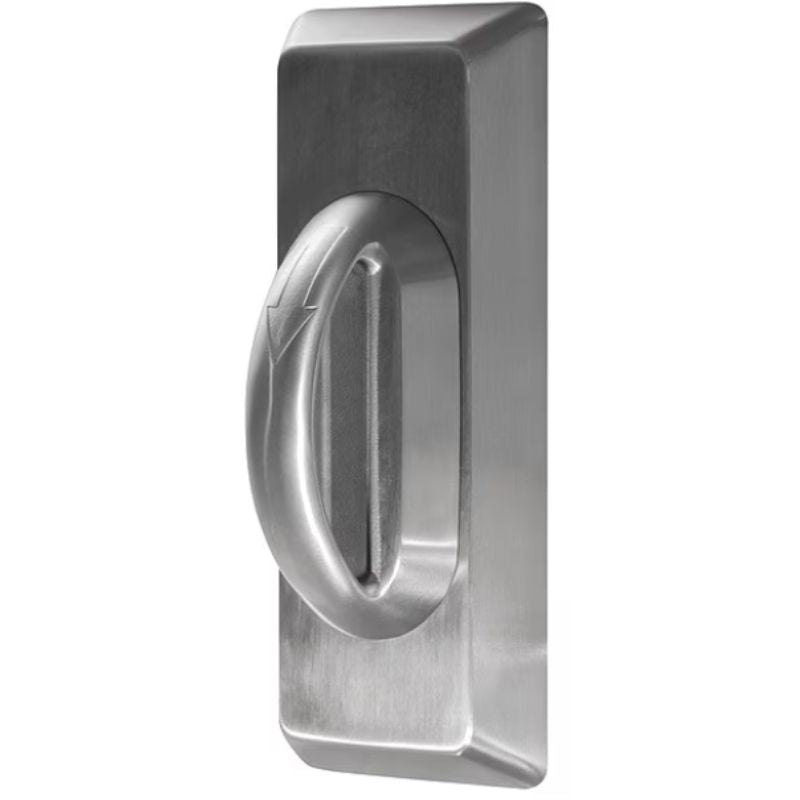

MarksUSA 195BH-DT-US32D Full Dummy Trim Cylindrical Lock, Non-Keyed, D-Lig Slide, Grade 1, Non Handed, Satin Stainless Steel Finish

MarksUSA 195BHDT-US32D Cylindrical Lock features D-Lig Slide and a satin stainless steel finish. It is a grade 1 lock with a non-handed design and a 2 3/4 backset, perfect for any commercial setting.

STANDARD FEATURES:

• Rating: ANSI A156.2 Grade 1, UL Listed 3Hr Fire Rating
• 5- Point Ligature Resistant Slide Trim
• Backset: 2 3/4” Standard, 2 3/8”, 3 3/4” and 5” available
• Latch: #1834, stainless Steel Nose
• Ergonomic solid cast Stainless Steel Slide Slides down freely in the locked or unlocked position

• Escutcheon Plate solid cast Stainless Steel thru bolted for strength and easy installation
• Meets BHMA 156.34 Anti Ligature Trim Standard
• Tamper Resistant mounting screws
• Strike: #1135, 4 7/8” ASA curved lip Strike
• Door Thickness: 1 3/4”, consult factory for thicker doors
• Cylinder: Conventional Key n Knob Cylinder, Marks “C” Keyway, 6 pin w/2 keys –
  Available in IC and all OEM cylinder preps

• Marks Hi-Security Cylinder available
• Marks Stainless Steel Retractor - Long life 3X the BHMA Grade 1 cycle Standard
• Antimicrobial Finish available – Code AM
• Marks Lifetime Mechanical Warranty
• Available in Most BHMA ANSI Functions

Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.
