Technical Specs
| Function | 98-Classroom Security (180-degree lockdown) |
| ANSI Function | F110 |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design | Rose |
| Rose/Escutcheon Dimensions | 3-7/16" |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Cam Number | N123-098 |
| Handing | Non-Handed |
| Door Thickness | 1-5/8" to 2-1/8" |
| Std. Latch Number | 13-247 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Bolt Projection | 1/2" |
| Std. Strike Number | 10-025 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
Product Specs
| Manufacturer | Schlage |
| SKU | ND98PD |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| Application | Vandlgard |
| UL Listing Type | UL/cUL Listed |
| ANSI Number | ANSI A156.2 Series 4000, Grade 1 |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |

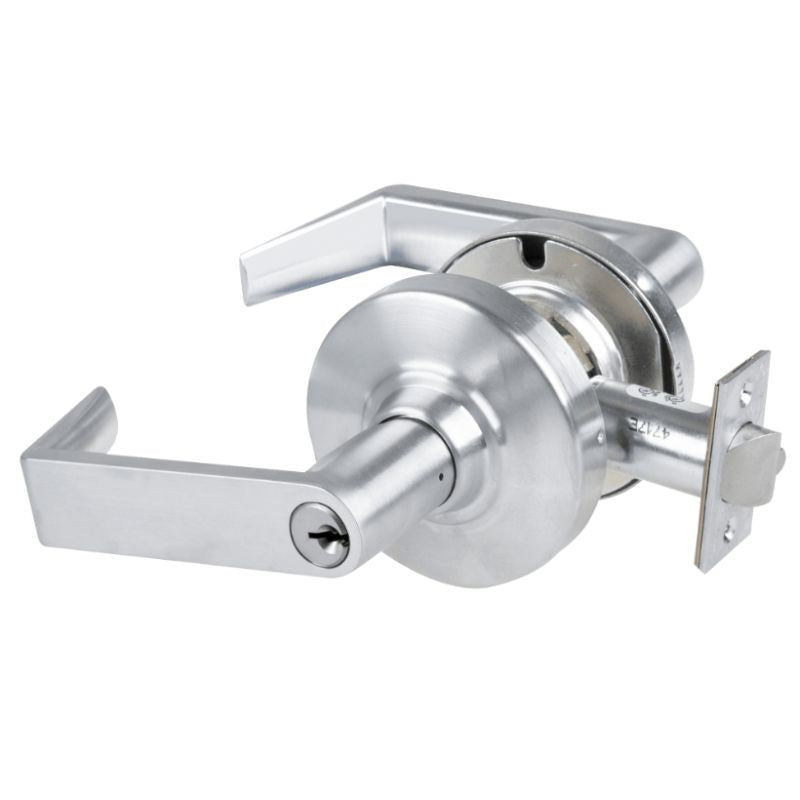

ND98PD-EHO-626 Classroom Security, Cylindrical Lock,180-Degree Lockdown, Rhodes Lever, 2 3/4 Backset, Sch ‟C‟ 6 Pin, Keyed Random, 2 Keys, Grade 1, Satin Chrome Finish
ND98PD-626 Cylindrical Lock, featuring Classroom Function and Sch "C", offers superior security with a 180-Degree Lockdown and 2 3/4" Backset. This grade 1 lock is equipped with 6 pins and comes with 2 randomly keyed keys, all finished in sleek Satin Chrome.
- Lever with key cylinder both sides; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by rotating key in either lever 180 degrees counterclockwise and returning to start position; Vandlgard® allows outside lever to rotate freely when locked
- Unlock outside lever by rotating key 180 degrees clockwise in either lever and returning to start position
- Inside lever always free for immediate egress
ND Series Lever Locks
Performance beyond Grade 1
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, lever torque, hammer blow, lever pull and other tests. This means confidence that the lock will last—whether the application calls for high abuse resistance or just operation over millions of cycles— without any degradation in performance.
Comprehensive offering for every opening
Mechanical, wired electrified and wireless electronic solutions allow a common aesthetic and consistent user experience throughout the building while lowering the total cost of ownership.
World-class design
A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any applications.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
-
Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
-
31 mechanical functions
-
Nine lever designs, two rose designs
-
10 available finishes
-
Supports standard, SFIC and FSIC cylinder formats
-
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
-
Support for 10 non-Schlage cores
