Description

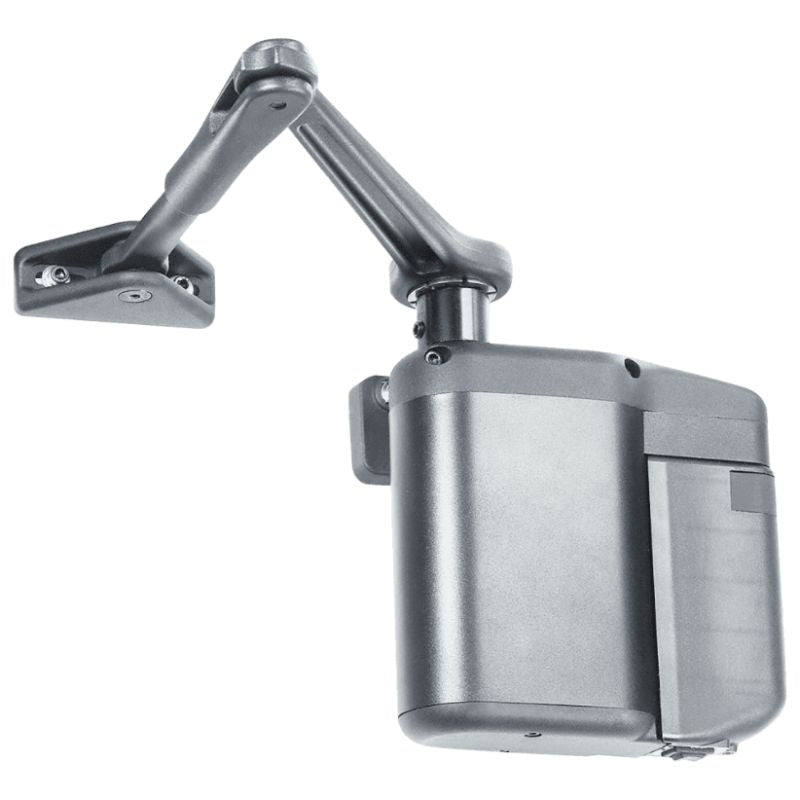

Norton 5811-LPB-689 ADAEZ PRO Automatic Door Operator Kit, Pull Side Mounted, Regenerative Drive System, 24VDC, 95 Deg Hold Open, Up to 48" Dr Width 250 LB, Non Handed, Aluminum Finish, Push Buttons Not Included
ADAEZ PRO 5811 (PULL)
- No electrical power required
- Moderate to high traffic, manual opening applications that occasionally require automatic operation
- Regenerative drive system charges an onboard battery pack
- Models 5831 and 5811 excel in applications where the traffic pattern allows for 80 door cycles per day, 25% of which
- are automatic and 75% of which are manual. These models requires no electrical connection, no permit, no inspection,
- no wiring, and no low voltage license. The 5800 Series installs like a manual door closer in less than 1 hour.
Product Specs
Manufacturer | Norton |
SKU | 5811xLPB 689 |
Grade | Grade 1 |
Installation | Commercial |
Origin | — |
Unit of Measure | Each |
UL Listing Type | UL10c |
ANSI Number | 156.19 |
Limited Warranty | 2 Years |
Fire Rated | 90 Min |
ADA Compliance | Yes |
Technical Specs
Type | Surface |
Technology | Self Powered |
Mounting Location | Pull Side |
Mounting Style | Regular |
Hold Open | Yes |
Hold Open Type | Electric |
Degree Hold Open | 95 Deg. |
Arm Type | Double Lever Arm Regular |
Degree Swing | 95 Deg. |
Back Check | None |
Delay | Yes |
Cover | Less |
Door Size | Up to 48" |
Door Weight | 250 Lbs. |
Voltage | Regenerative Drive System |
Physically Handicapped | Yes |
Product Type | Door Operators |
