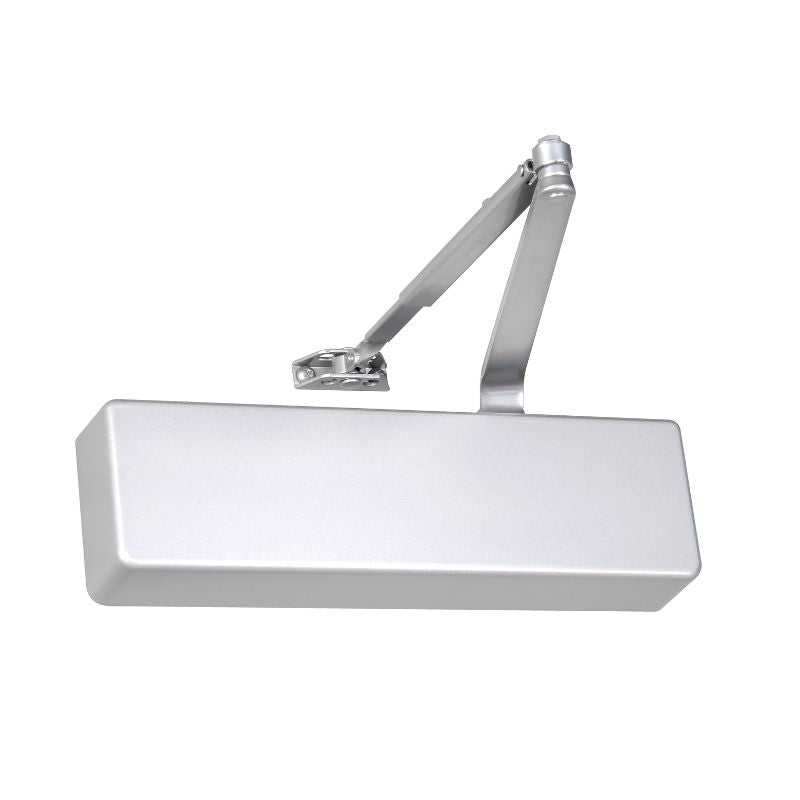

Norton 7500 Surface Door Closer, Tri Mount Push or Pull Side, Regular Arm, Size 1 to 6, Plastic Cover, Grade 1, Non Handed
The Norton 7500 Surface Door Closer offers Tri Mount functionality, allowing for installation on either push or pull side. With a Regular Arm and the ability to accommodate sizes 1 to 6, this Grade 1 door closer also features a plastic cover for added durability and is non-handed for versatility.
The 7500 Series is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in facilities that demand reliability, such as government, healthcare and educational institutions.
Tri-Style® packaging; tri-packed for regular, top jamb or parallel arm mounting
Non-handed
Rack-and-pinion design
Cast aluminum body
Adjustable spring sizes 1-6
2-1/8" (54mm) projection
1-1/2" (38mm) diameter piston
5/8" (16mm) diameter pinion journals
Standard, separate and independent, latch, sweep and backcheck intensity valves
Backcheck positioning
Staked valves
Retrofit plates
NorGlide® fluid
Molded plastic cover
All standard arm applications allow doors to swing 180°, conditions permitting
Self-drilling screws
Full-size template
Application specific mounting: Regular (S), Top Jamb (JS) or Parallel (P) mount
