Description

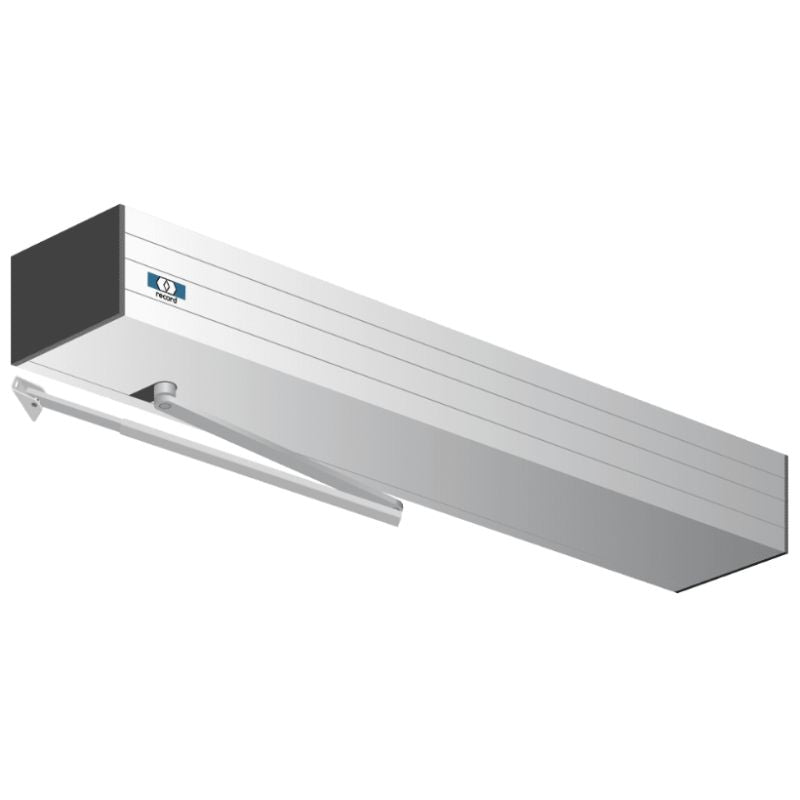

Record SS8211C2SNN-42 Heavy Duty Low Energy Auto Door Operator, 45 Inch Header, Single Door Operator, SS8200 Series SimpleSwing, Standard Arm Mounted Push Or Pull, Adjustable Arm Up To 12 Inch Push Reveal, 6 Inch Pull Reveal, Non Handed, Max Door Weight 400 LBs, Clear Aluminum
The Record SS8211C2SNN-42 is a heavy duty, low energy auto door operator with a 45 inch header. It features the SS8200 Series SimpleSwing and a standard arm mounted push or pull design. The adjustable arm can accommodate up to 12 inches for push reveal or 6 inches for pull reveal. This non-handed door operator has a maximum weight capacity of 400 LBs and is constructed with clear aluminum.
SimpleSwing Heavy Duty Door Operators
The Record SS8200 is a heavy duty low energy operator that can be specified for almost any interior or exterior application.
With built-in programmable controls and interfaces for electric strikes—combined with up to a 3-year warranty—the SS8200 simply out performs the competition.
- Header width dimensions: 4.5" x 5"
- Motor: 1/4hp
- Opening angle with track arm: 90 degrees
- Opening angle with standard arm: 120 degrees
- Electrical requirements: 120 VAC @ 15amps 60hz
- Power Supply: 24V AC/DC @.5amp for magnets, electric strikes
- ANSI/BHMA 156.19
- UL325/UL228
- Operating Conditions: -40°F and +140°F
- This operator is designed for single doors. For paired doors, please order one operator per door.
Product Specs
Manufacturer | record-usa |
SKU | SS8211C2SNN 42 |
Installation | Commercial |
Origin | Switzerland |
Unit of Measure | EACH |
UL Listing Type | UL325 |
ANSI Number | A156.19 |
BAA Qualified | No |
Limited Warranty | 3 Years |
Fire Rated | 3 Hours {A} |
ADA Compliance | Yes |
Technical Specs
Type | Surface |
Technology | Electromechanical |
Mounting Location | Push or Pull Side |
Mounting Style | Regular |
Hold Open | Yes |
Hold Open Type | Electric |
Arm Type | Double Lever Arm, Regular |
Hand | Left-Handed |
Degree Swing | 120 Deg. |
Stop | Positive Stop |
Door Size | 42" |
Door Weight | 254 lbs. Push, 198 lbs. Pull |
Reveal Size | 12" |
Voltage | 120V |
Aux Power | 24V AC/DC @ 0.5A |
Physically Handicapped | Yes |
Product Type | Door Operators |
