Technical Specs
| Hinge Type | Pivot, Center Hung Set |
| Product Type | Pivots |
Product Specs
| Manufacturer | Rixson |
| SKU | H345 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Limited Warranty | 2 Years |
| Fire Rated | No |

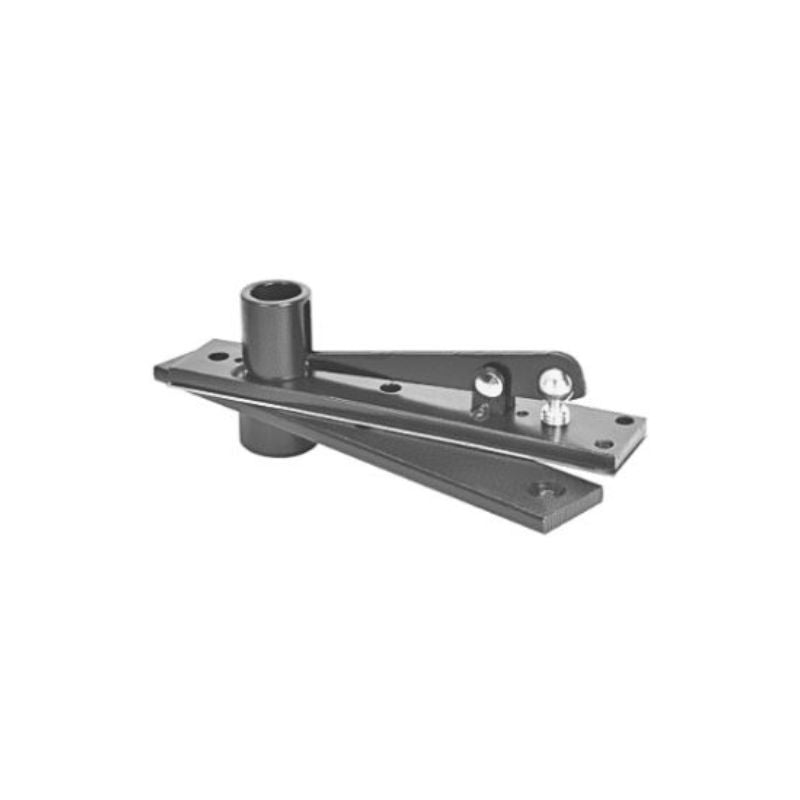

Rixson H345 Center Hung Long Throw Top Pivot, Non Handed
Rixson H345 Center Hung Long Throw Top Pivot is a non-handed product that is designed to provide optimal support and stability. With its advanced technology, this pivot is a top choice among industry experts for its superior performance. Its center hung design ensures a long throw for smooth operation, making it a reliable and efficient option for any installation.
Center hung pivots are door hanging means only. To close doors, see floor closer sections.
*For doors taller than 8'6" use top pivot 345 in lieu of 340
Application
- Fully Concealed
- Center Hung
- Non-handed
- Earthquake Tolerant
- Taller Doors
- Ideal for locations where there is a fear of dramatic building settling or for doors over 8'6" in height
- Long pivot pin engages in top of door 1-3/4"(44mm)
- Can be used with any center hung bottom pivot or floor closer whose pivot point is 2-3/4, or greater, from the edge of the door. Order pivot set or floor closer LTP (less top pivot) with H345 on separate line item
- Walking beam-type pivot – 11/16" (17mm) diameter pivot pin
- Heavy-duty needle bearing
- Completely concealed when door is closed
- Furnished with wood and machine screws
