Buy Complete Door Hardware Set
? What's this?
Door hardware to Complete Your Set
Total $1759.00
Technical Specs
Physical Appearance | Wide Stile Pushpad |
Device Type | Rim |
Mechanical Function | Exit Only, Accepts Various Trim |
Device Length | 42" |
Hand | Reversible |
Switch Type | Touchbar Monitor |
Electric Options | Alarm Kit Battery Powered |
Dogging Options | Cylinder Dogging |
Includes Trim | No |
Includes Cylinder(s) | Yes |
Cylinder Type | Rim |
Minimum Stile Size | 4 1/2" |
Door Material | Metal or Wood |
Door Width | 37" - 42" |
Door Thickness | 1 3/4" |
Fire Rated | Yes |
Reversible | Yes |
Product Type | Alarmed Exit Devices |
Product Specs
Manufacturer | Sargent |
SKU | 12-5310J |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
Limited Warranty | 1 Year |
Fire Rated | Yes |

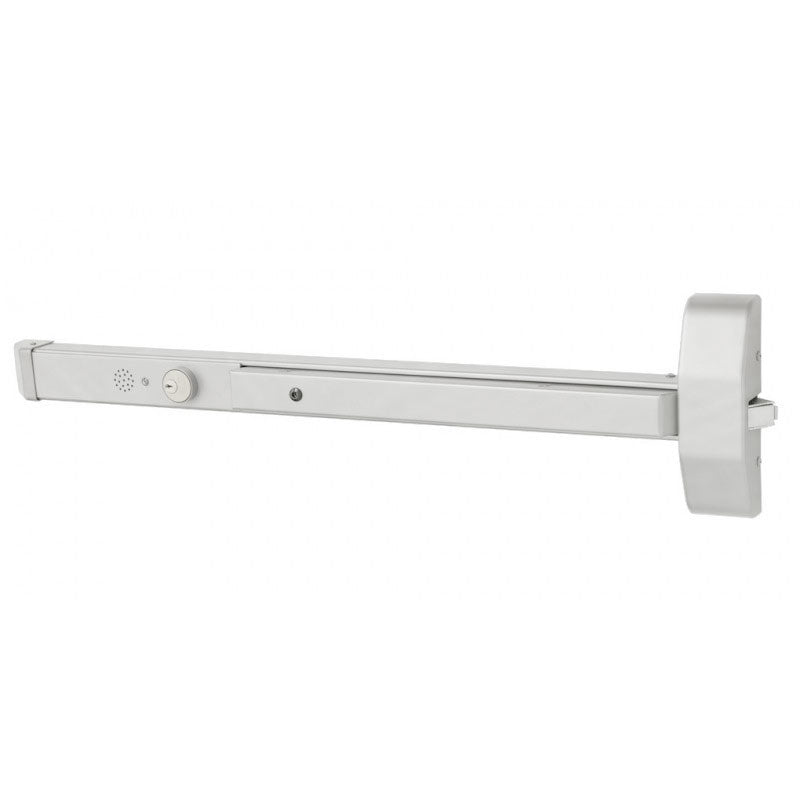

The Sargent 12-5310J Fire Rated Alarmed Rim Exit Device has a Wide Stile Pushpad, is for Door Widths 37" to 42", Cylinder Dogging, comes with a 41 LA Keyed KD 1 Bitted Cylinder, and is Field Reversible.
Sargent 5300 Series
SARGENT's 5300 Series alarmed exit devices are designed for areas requiring a standalone alarm on outward swinging doors. An integrated alarm in the push rail discourages the unauthorized use of emergency exit doors, with the alarm sounding immediately upon exit. The 5300 Series is ideal for rear exterior doors, doors leading to a rooftop, or anywhere security is a concern.
- Microprocessor based alarm board
- When armed, alarm sounds immediately upon rail depression
- All exit devices have tamper-resistant latching (Guarded Latch)
- Battery powered – 9VDC • 103 Db @ 8 ft pulsating horn
- Flashing red LED provides visible violation indication, reset by key only
- Low battery alert
- Automatic re-arming option
- Supplied with a #41 (1-1/8") with standard off set cam
- UL Listed and cUL Listed
- UL Listed to Canadian Safety Standards
- Rail Monitoring & Guarded Latch are standard internal features
- Minimum Door Widths: - E-32" only; F-36"-34"; J-42"-37"; G-48"-43"
- Complies to ANSI/BHMA A156.3 and A117.1
- Touch bar assembly and cover (5300 & 12-5300) are rolled steel, and the chassis is nonferrous alloy
- 1-3/4" thick standard with a 4-1/2" minimum stile width. Furnished with wood and machine screws
- Through-bolts and mortise nuts are available to order
- The 5300 Series come standard with the dogging feature. The 12-5300 comes standard with the less dogging (LD) option
