Sargent 12-8873-G-ETL-12V Fire Rated Rim Exit Device, Electrified ETL Trim, 12V, Fail Safe, Non-Keyed, 43"-48" Bar

  • SKU: 128873GETL12VUS32DLHR
$2,432.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

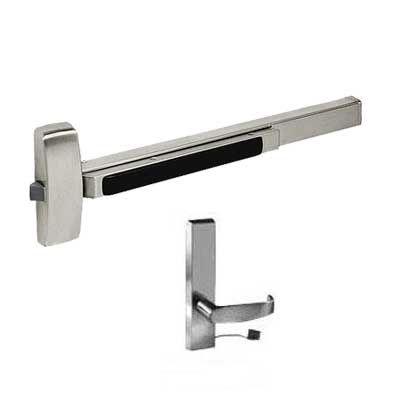

Sargent 12-8873-G-ETL-12V is a Fire Rated Rim Exit Device that has a 43"-48" bar, an Electrified ET Trim with an L lever, and Fail Safe Function- Power Off Unlocks Lever.

73 Electrified ET Trim - Fail Safe
Power Off, Unlocks Lever (No Cylinder)

The Sargent 12-8873-ETL Is a Wide Stile Rim Panic Bar With Electrified Trim Is Handed LHR Or RHR, US32D Or US10B Finishes.

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No
Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Device to Accept Electrified Trim
Device Length 48"
Hand LHR OR RHR
Dogging Options Less Dogging
Includes Trim YES
Trim Type ETL
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 4-3/4"
Door Material Metal or Wood
Door Width 43" to 48"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
