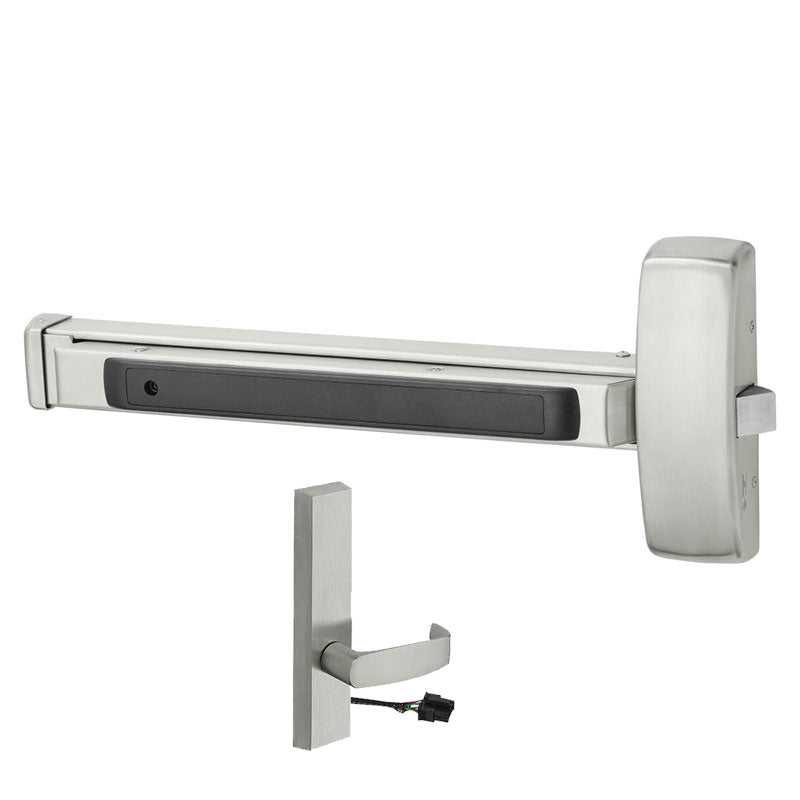

Sargent 12-8874-E-ETL-12V is Fire Rated Rim Exit Device, is Electrified ETL Trim, is 12V, is Fail Secure - Power Off, Locks Lever, is Non-Keyed, and has a 24"-32" Bar.
74 Electrified ET Trim - Fail Secure
Power Off, Locks Lever (No Cylinder)
Sargent 12-8874-E-ETL-12V Is a Wide Stile Rim Panic Bar With Electrified Trim Is Handed LHR Or RHR, US32D Or US10B Finishes, in Grade 1.
| Manufacturer | Sargent |
| SKU | 12-8874E |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | Yes |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 32" |
| Hand | LHR or RHR |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Non-Keyed Electric Lever |
| Trim Part No. | 774-8 ETL 12V |
| Includes Cylinder(s) | No |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 24" to 32" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
