Name: Sargent 12-8874-J-ETL-12V Fire Rated Rim Exit Device, Electrified ETL Trim, 12V, Fail Secure, 37"-42" Bar
Brand: SARGENT
SKU: 128874JETL12VUS32DLHR
Price: 2671.00 CAD
Availability: InStock

All SARGENT Products

Sargent 12-8874-J-ETL-12V Fire Rated Rim Exit Device, Electrified ETL Trim, 12V, Fail Secure, 37"-42" Bar

SKU: 128874JETL12VUS32DLHR

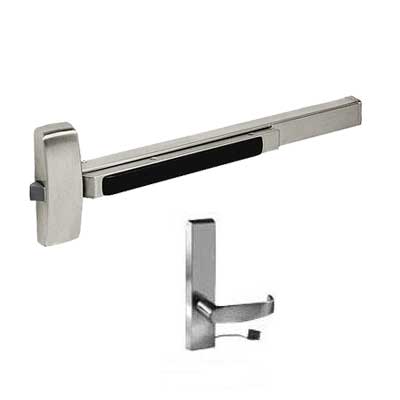

Sargent 12-8874-J-ETL-12V-US32D Fire Rated Rim Exit Device

All SARGENT Products

Buy Complete Door Hardware Set

Finish - US32D Satin Stainless Steel (630)

US32D Satin Stainless Steel (630)
US10B Oxidized Dull Bronze (613)

Sargent 12-8874-J-ETL-12V Fire Rated ...

Finish:

Handing:

Variant

Quantity

–

+

$2,671.00

Sargent 34 LA KD Rim Cylinder - LA Keyway, Keyed Different, 6 Pin

Finish - US32D Satin Stainless Steel (630)

US32D Satin Stainless Steel (630)
US10B Oxidized Dull Bronze (613)
US32 Bright Stainless Steel (629)
US3 Bright Brass (605)
BSP Black Suede Powder Coat
US10 Satin Bronze (612)

Sargent 34 LA KD Rim Cylinder - LA Ke...

Finish:

Variant

Quantity

–

+

$170.00

Sargent 351-UO-TB-EN Door Closer Powerglide Universal Arm Select Finish

Sargent Finish - EN Aluminum Enamel

EN Aluminum Enamel
EAB Brass Enamel to be used with Brass Finishes
EP Bronze Enamel to Match US10
EB Bronze Enamel to Match 10B
10BE Dark Satin Oxidized Bronze Equivalent

Sargent 351-UO-TB Powerglide Surface ...

Sargent Finish:

Variant

Quantity

–

+

$565.00

Total $3406.00

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Rim
Mechanical Function	Device to Accept Electrified Trim
Device Length	42"
Hand	LHR or RHR
Dogging Options	Less Dogging
Includes Trim	Yes
Trim Type	Lever
Trim Design	Non-Keyed Electric Lever
Trim Part No.	774-8 ETL 24V
Includes Cylinder(s)	No
Cylinder Type	Non-Keyed
Minimum Stile Size	4 3/4"
Door Material	Metal or Wood
Door Width	37" to 42"
Door Thickness	1 3/4" - 2 1/4"
Fire Rated	Yes
Reversible	Yes
Product Type	Rim Exit Devices

Product Specs

Manufacturer	Sargent
SKU	12-8874J
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	3 Hours {A}
Burglar Rated	No
ADA Compliance	Yes

Sargent 12-8874-J-ETL-12V is Fire Rated Rim Exit Device, is Electrified ETL Trim, is 12V, is Fail Secure - Power Off, Locks Lever, is Non-Keyed, and has a 37"-42" Bar.

74 Electrified ET Trim - Fail Secure
Power Off, Locks Lever (No Cylinder)

Sargent 12-8874-J-ETL-12V Is a Wide Stile Rim Panic Bar With Electrified Trim Is Handed LHR Or RHR, US32D Or US10B Finishes, in Grade 1.
