Description

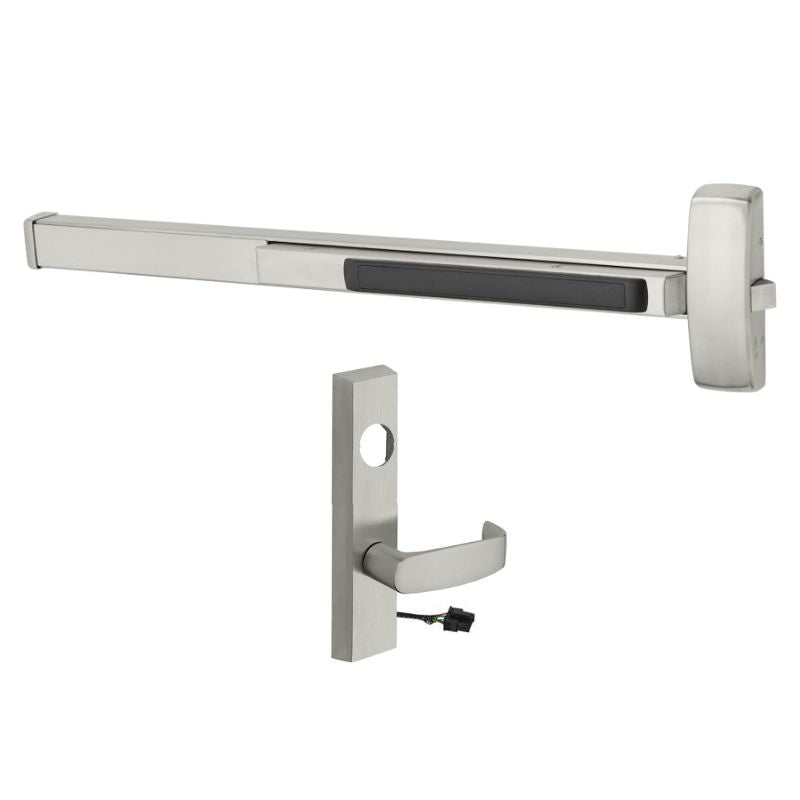

Sargent 12-8876-E-ETL-12V Fire Rated Rim Exit Device, 12V Fail Secure, L-Lever, Power off Unlocks Lever Key retracts Latch, 24-32 Inch Door, Less Cylinder, No Dogging, Grade 1
The Sargent 12-8876-E-ETL-12V Fire Rated Rim Exit Device is designed for use on 24-32 inch doors and is equipped with a 12V Fail Secure feature. In the event of a power failure, the L-Lever unlocks the lever and retracts the latch, allowing for a quick and easy exit. This Grade 1 device also does not require a cylinder and does not have a dogging feature.
76 Electrified ET Trim - Fail Secure
776-8-ETL-12V-LC Electrified Lever Trim, ETL Trim, 12V, Fail Secure Power Off, Locks Lever, Key Retracts Latch, Less Cylinder
Product Specs
| Manufacturer | Sargent |
| SKU | 12-8876E |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | Yes |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 32" |
| Hand | LHR or RHR |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Keyed Electric Lever |
| Trim Part No. | 776-8 ETL 12V |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 24" to 32" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | Yes |
| Product Type | Rim Exit Devices |
