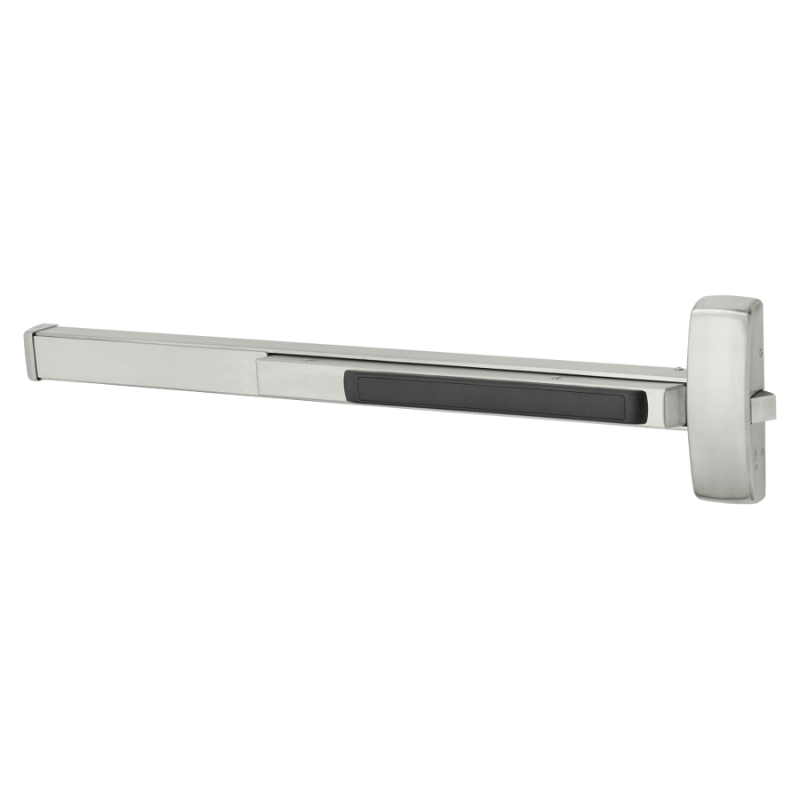

Sargent 12-8888-G Fire Rated Rim Exit Device, Multi-Function, Exit Only, 43"-48" Inch Door, Less Dogging, Reversible Non-Handed, Grade 1

The Sargent 12-8888-G Reversible Fire Rated Rim Exit Device is a 43"-48" Bar, Multi-Function, Grade One Surface Mounted Fire Rated Panic Bar. The Sargent 8888 Is Non-Handed Seven Functions Determined By The Function Of The Trim.  Sargent 8800 Series Rim Exit Devices.

Multi-Function Device: Trims below decide the function of the device;

704 - Night Latch Function, Key Retracts Latch (accepts a Sargent #34 Cylinder)
710 - Dummy Trim: No outside operation (No Cylinder)
713 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715 - Passage Only (No cylinder)
773 - Fail Safe (No Cylinder)
774 - Fail Secure (No Cylinder)
775 - Fail Safe (accepts a Sargent #34 Cylinder)
776 - Fail Secure (accepts a Sargent #34 Cylinder)

Vendor Assa Abloy
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Exit Only, Accepts Various Trim
Device Length 48"
Hand Non-Handed
Dogging Options Less Dogging
Includes Trim No
Trim Type Less trim
Includes Cylinder(s) No
Minimum Stile Size 4-3/4"
Door Material Metal or Wood
Door Width 43" to 48"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
