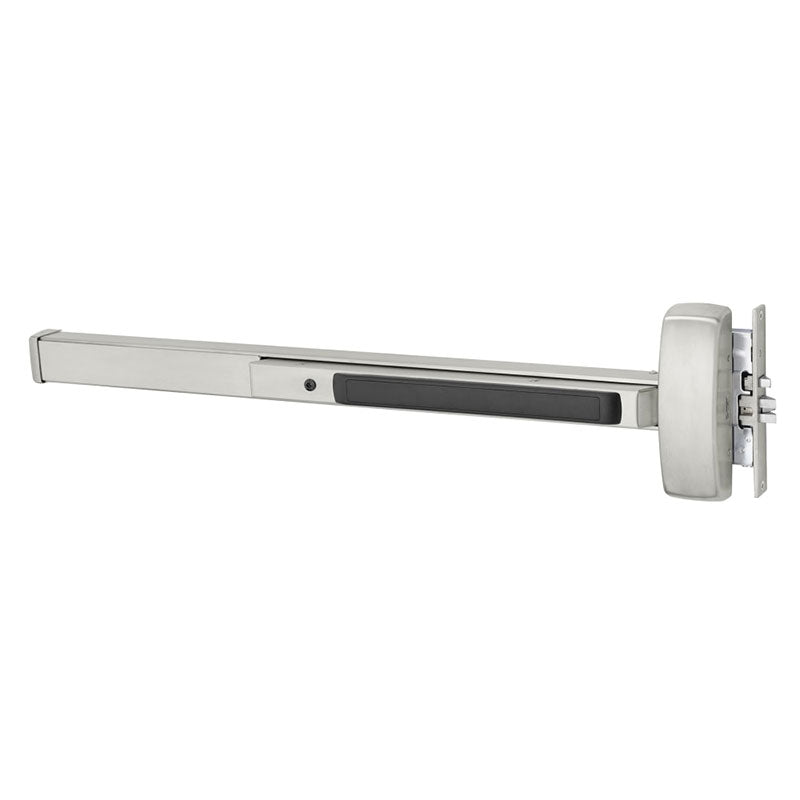

The Sargent 12-8904F-US32D is a Fire Rated Mortise Device Exit Bar, with a Wide Stile Pushpad, is 36" Long and accommodates door 33"-36" wide, is Night Latch Function, comes Less Dogging, is handed Left Hand Reverse, is Grade 1, and comes in Satin Stainless Steel Finish
8900 Series Mortise Exit Devices
The 8900 Series is for single-door applications
8900 Mortise Lock Exit Device has concealed single-point guarded latching for additional security and is designed for standard-width stile applications on wood and metal doors.
Manufacturer | Sargent |
SKU | 12-8904F 32D |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL10C & UL305 |
ANSI Number | ANSI/BHMA A156.3 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | 5 Years |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
ADA Compliance | No |
Finish | 630/US32D |
Finish Description | Satin Stainless Steel |
Finish Family | Matte Silver |
Physical Appearance | Wide Stile Pushpad |
Device Type | Mortise |
Mechanical Function | Night Latch |
Device Length | 36" |
Hand | Left Hand Reverse or Right Hand Reverse |
Dogging Options | Less Dogging |
Includes Trim | Yes |
Trim Type | Cylinder Only |
Includes Cylinder(s) | Yes |
Cylinder Type | 1-3/4" Mortise |
Minimum Stile Size | 4-1/2" |
Door Material | Metal |
Door Width | 33" to 36" |
Door Thickness | 1-3/4" - 2-1/4" |
Fire Rated | Yes |
Reversible | No |
Product Type | Mortise Exit Devices |
