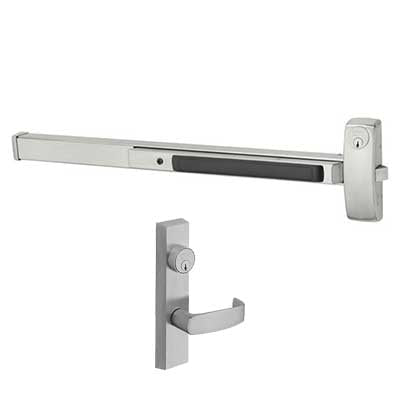

Sargent 12-LC-8816-F-ETL Fire Rated Rim Exit Device, Classroom Security Function, ETL Trim, Less Cylinder, 33"-36" Bar

  • SKU: 128816FETLUS10BLHR

Sargent 12-LC-8816-F-ETL Fire Rated Rim Exit Device, Classroom Security Function, ETL Trim, Less Cylinder, 33"-36" Bar

  • SKU: 128816FETLUS10BLHR
Sale price$2,442.00
Available (5‑6 Weeks)
5-6 Weeks Lead Time
Finish: US10B Oxidized Dull Bronze (613)
Handing: LHR - Left Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 12-LC-8816-F-ETL Fire Rated R...
Quantity
+
$1,182.00 $0
Sargent 34 LA KD Rim Cylinder - LA Ke...
Quantity
+
$1,182.00 $0
Sargent 351-UO-TB Powerglide Surface ...
Quantity
+
$1,182.00 $0
Total $3077.00

Technical Specs

Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Classroom Security
Device Length 36"
Dogging Options Less Dogging
Includes Trim Yes
Trim Type ETL
Includes Cylinder(s) No
Minimum Stile Size 4-3/4"
Door Material Metal or Wood
Door Width 33" to 36"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated Yes
Reversible No
Product Type Rim Exit Devices

Product Specs

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No

The Sargent 12-LC-8816-F-ETL is a 36" Fire Rated Rim Exit Device that is Grade 1 with a Classroom Security Function, with ETL Trim that comes Less Cylinder, and is for 33"-36" Door Widths.

16 Classroom Security ET Trim
Key Outside Retracts Latch; Key Inside Unlocks/Locks O/S Trim
O/S #34 Cylinder & I/S #44 Cylinder3" - 36" Door Widths

The 8800 series is designed for standard-width stile applications on wood and metal doors.

The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.

Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Features:

  • Single-point rim latching device
  • Single door & double door applications with mullions
  • Quiet operation and solid security
  • Devices are ANSI A156.3 - Grade 1
  • UL Fire and Panic listed
