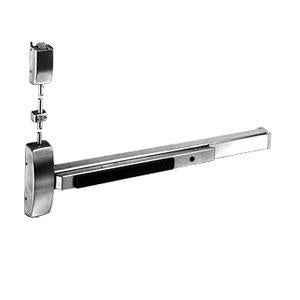

Sargent 12-NB-8710-G-84 Fire Rated Surface Vertical Rod Exit Device, Less Bottom Rod Exit Only, 84" Dr Height, 43"-48" Dr Widths

  • SKU: 12NB8710G84US32DLHR

Sargent 12-NB-8710-G-84 Fire Rated Surface Vertical Rod Exit Device, Less Bottom Rod Exit Only, 84" Dr Height, 43"-48" Dr Widths

  • SKU: 12NB8710G84US32DLHR
Sale price$2,458.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse
CUSTOMIZE YOUR SIGN
Main Sign Colour *
Writing / Font Colour *
Writing / Font Style *
Please get in touch for alternate fonts to these before purchase.
Fixing Type *
Invisible fixings require a flat / level surface.
Add Your Personalisation *
x3 Lines of Text (Max 15 characters including spaces per line)
Layout preference / Design notes (Optional)
Please leave any notes on preferred layouts for your sign design.

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 12-NB-8710-G-84 Fire Rated Su...
Quantity
+
$2,458.00
Sargent 710-ETL Exit Device, Dummy Le...
Quantity
+
$755.00
Total $3213.00

Technical Specs

Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Exit Only
Device Length 48"
Mechanical Options Less Bottom Rod
Top Strike 646
Includes Trim No
Trim Type Less Trim
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 3 1/2"
Door Material Metal or Wood
Door Width 43" - 48"
Door Height 84"
Door Thickness 1 3/4" to 2 1/4"
Fire Rated Yes
Reversible No
Product Type Surface Vertical Rod Exit Devices


Product Specs

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No



The Sargent 12-NB-8710-G-84 Fire Rated (12) Less Bottom Rod (NB) Surface Vertical Rod Exit Device is Exit Only (no outside operation). It is for an 84" Door Height, single-point top latching, For 43"-48" Door widths,  rail (G 48" can be cut down to 43") and comes in US32D/630 Satin Stainless Steel And US10B/613 Oil-Rubbed Bronze Finish options.

Features
• Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel

What customers say about Quality Door & Hardware:
"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."
What grade is this exit device?
The Sargent 12-NB-8710-G-84 is a Grade 1 commercial exit device.
