Description

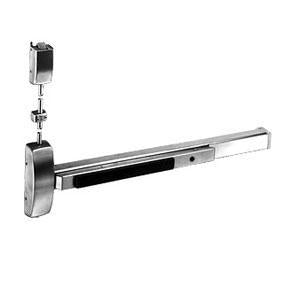

The Sargent 12-NB-8710-J Fire Rated (12) Less Bottom Rod (NB) Surface Vertical Rod Exit Device is Exit Only (no outside operation); the NB-8710-84 is for an 84" Door Height, single-point top latching, and a 37"-42" door width (the J bar is 42 " long and can be cut down to 37"). It comes in US32D/630 Satin Stainless Steel And US10B/613 Oil-Rubbed Bronze Finish options.
• Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel
Product Specs
Manufacturer | Sargent |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL10C & UL305 |
ANSI Number | ANSI/BHMA A156.3 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | 5 Years |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
ADA Compliance | No |
Technical Specs
Physical Appearance | Wide Stile Pushpad |
Device Type | Surface Vertical Rod |
Mechanical Function | Exit Only |
Device Length | 42" |
Hand | Optional |
Mechanical Options | Less Bottom Rod |
Top Strike | 646 |
Includes Trim | No |
Minimum Stile Size | 4 1/2" with Trim, 3 1/2" without Trim |
Door Material | Metal or Wood |
Door Width | 37" - 42" |
Door Height | 84" |
Door Thickness | 1 3/4" to 2 1/4" |
Fire Rated | No |
Product Type | Surface Vertical Rod Exit Devices |
