Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Storeroom |
| Device Length | 36" |
| Hand | LHR or RHR |
| Mechanical Options | Less Bottom Rod |
| Dogging Options | Less Dogging |
| Top Strike | 646 |
| Includes Trim | Yes |
| Trim Type | 706-8 ETP |
| Minimum Stile Size | 4-1/2" |
| Door Material | Metal or Wood |
| Door Width | 33" to 36" |
| Door Height | 84" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rated | Yes |
| Reversible | No |
| Product Type | Surface Vertical Rod Exit Devices |
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |

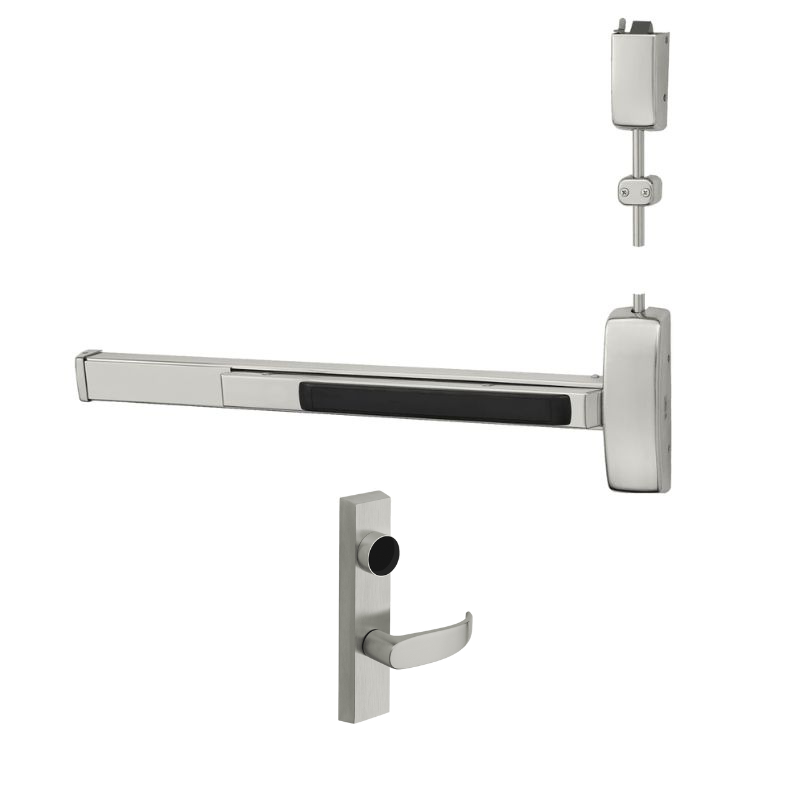

Sargent 12-NB8706-F-ETP-LC Fire Rated Surface Vertical Rod Exit Device, With Storeroom Function ET Trim, Escutcheon-P Lever, For 33-36 In Dr W, 84 In Dr Ht, Less Bottom Rod, Includes Thermal Pin, Less Cylinder
The Sargent 12-NB8706-F-ETP Fire Rated Surface Vertical Rod Exit Device is designed for 33-36 inch door widths and an 84 inch door height. It comes with the LC-706ETP trim. Additional features include a storeroom function, ET escutcheon-p lever, thermal pin, and a cylinder-less design.
Come With Sargent LC-706-8-ETP Exit Device Trim, Key Locks/Unlocks Storeroom Function, ET Escutcheon-P Lever, Less Cylinder
NB8700 Series Surface Vertical Rod Exit Devices
The NB8700 Series is a top latch surface vertical rod exit device.
The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. This series has both rated and non-rated openings.
- Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" to 2 1/4" specify thickness and order as a 31- Prefix; 4 1/2" (114mm) minimum stile with trim and 3 1/2" (44mm) minimum stile without trim
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
★★★★★
What customers say about Quality Door & Hardware:
"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."
What door dimensions does the Sargent 12-NB8706-F-ETP-LC Fire Rated Surface Vertical Rod Exit Device fit?
This exit device fits single doors 33–36 inches wide and 84 inches tall.
