Description

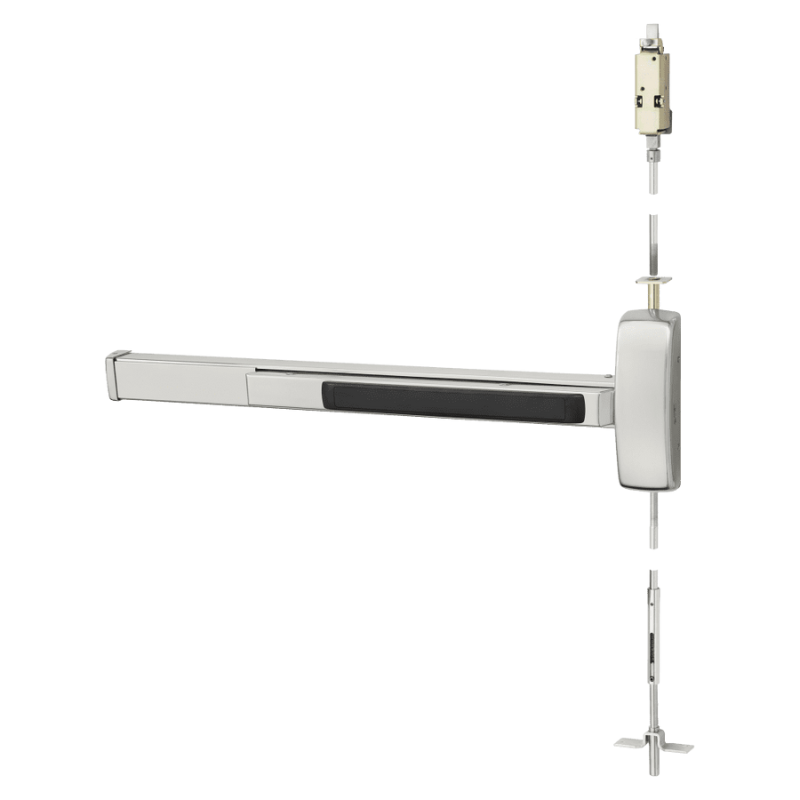

Sargent 12-WD8606F-120-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Storeroom Function, Less Trim, 33-36 Inch Door, 120 Inch Door Height, Less Dogging, Grade 1, 630 Satin Stainless Steel Finish
Sargent 12-WD8606F-120-US32D Sargent exit device combines fire-rated safety with access control for commercial installations. Compatible with standard 33-36 inch doors reaching 120 inches in height, the concealed vertical rod mechanism operates invisibly within the door frame. Storeroom function prevents unauthorized external entry while permitting immediate emergency egress from inside. Grade 1 durability rating withstands demanding commercial use, and the 630 satin stainless steel finish provides superior corrosion resistance. Without dogging, it enforces consistent security protocols aligned with fire and building code requirements.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
-
UL10C (Fire) and UL305 (Panic) listed
Product Specs
| Manufacturer | Sargent |
| SKU | 12-WD8606F-120-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
36" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Storeroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
33" to 36" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
120" |
