Description

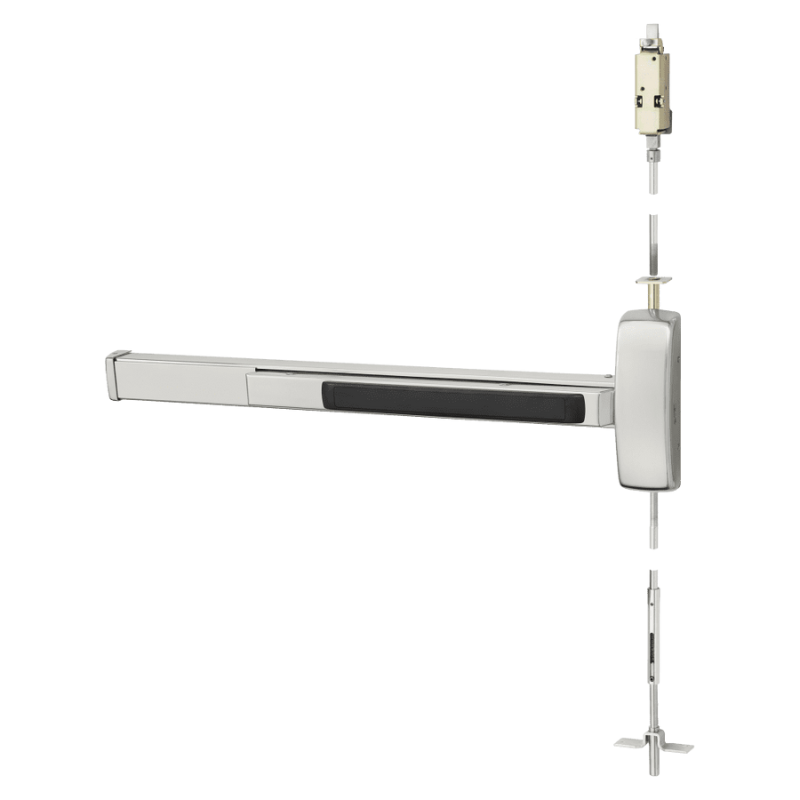

Sargent 12-WD8606F-96-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Storeroom Function, Less Trim, 33-36 Inch Door, 96 Inch Door Height, Less Dogging, Grade 1, 630 Satin Stainless Steel Finish
Sargent 12-WD8606F-96-US32D exit device combines fire-rated safety certification with sophisticated access control for commercial applications. Engineered for standard 33-36 inch doorways up to 96 inches in height, its concealed vertical rod design operates discreetly within the door frame. The storeroom function prevents unauthorized external access while the non-dogging configuration maintains strict entry protocols. Certified Grade 1, it withstands the rigorous demands of institutional and commercial environments. Finished in 630 satin stainless steel, the hardware resists corrosion and maintains its refined appearance through years of intensive use. An ideal solution for facilities balancing emergency egress requirements with comprehensive security measures.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
-
UL10C (Fire) and UL305 (Panic) listed
Product Specs
| Manufacturer | Sargent |
| SKU | 12-WD8606F-96-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
36" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Storeroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
33" to 36" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
96" |
