Description

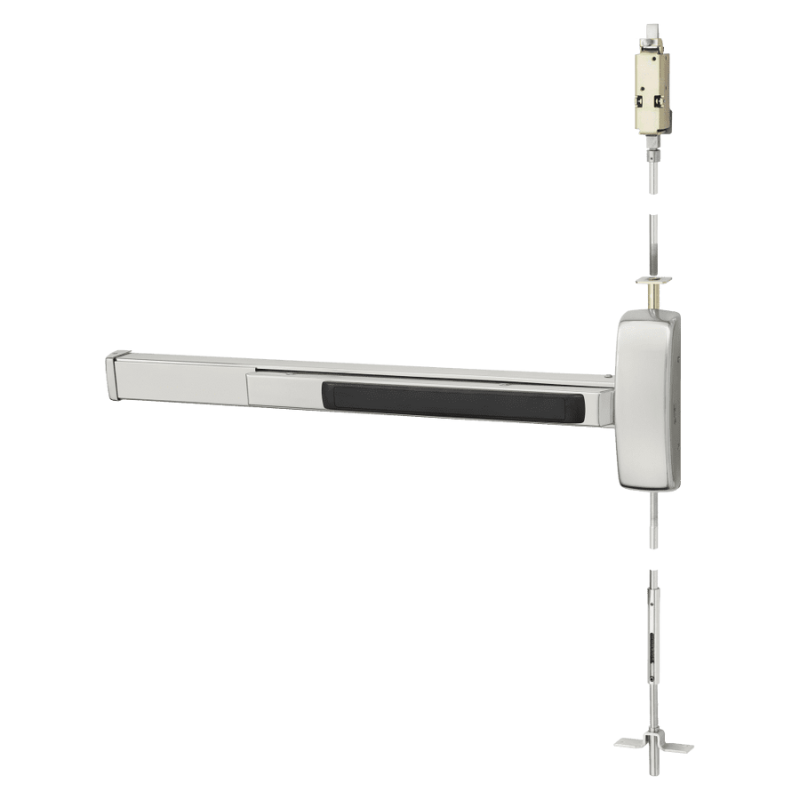

Sargent 12-WD8606G-96-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Storeroom Function, Less Trim, 43-48 Inch Door, 96 Inch Door Height, Less Dogging, Grade 1, 630 Satin Stainless Steel Finish
The Sargent 12-WD8606G-96-US32D combines fire-rated performance with refined commercial design. This Grade 1 exit device utilizes concealed vertical rod technology to meet emergency egress requirements while maintaining a clean architectural appearance. The wide stile pushpad and storeroom function provide intuitive access control for restricted areas. Built for 43-48 inch doors with 96 inch height specifications, its 630 satin stainless steel finish withstands heavy use and environmental exposure. An ideal solution for facilities demanding both safety compliance and aesthetic integration.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
-
UL10C (Fire) and UL305 (Panic) listed
Product Specs
| Manufacturer | Sargent |
| SKU | 12-WD8606F-96-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
48" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Storeroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
43" to 48" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
96" |
