Description

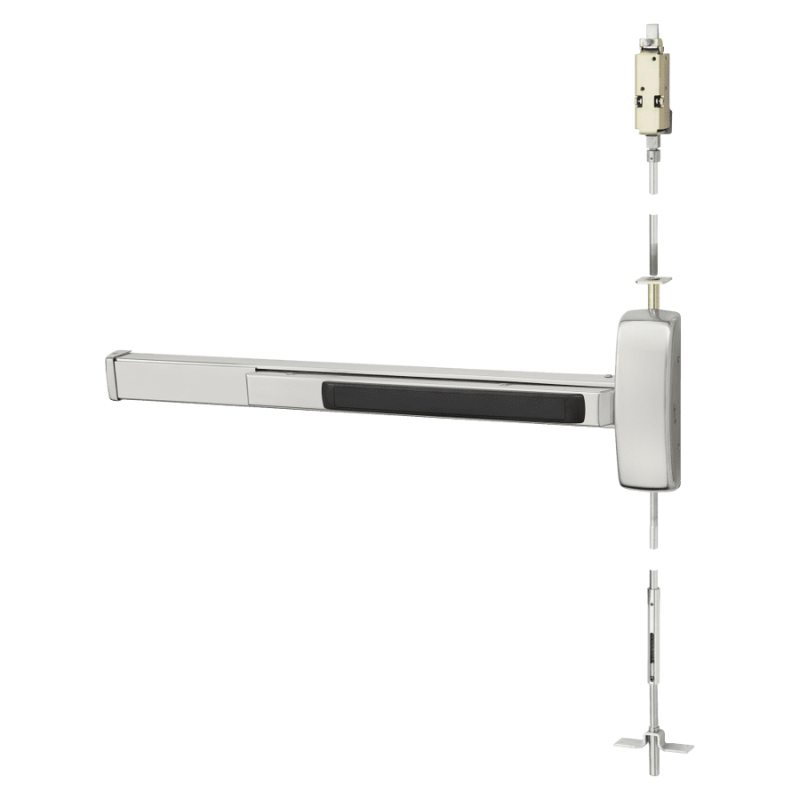

Sargent 12-WD8606J-96-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Storeroom Function, Less Trim, 37-42 Inch Door, 96 Inch Door Height, Less Dogging, Grade 1, 630 Satin Stainless Steel Finish
The Sargent 12-WD8606J-96-US32D is a heavy-duty fire-rated exit device engineered for commercial applications requiring stringent safety compliance. This Grade 1 certified unit features a concealed vertical rod system with storeroom function, providing secure access control while maintaining emergency egress capability. Designed for mid-width openings between 37-42 inches at standard 96-inch door heights, it incorporates a wide stile pushpad for reliable operation under emergency conditions. The 630 satin stainless steel finish delivers superior corrosion resistance in demanding environments, while the absence of dogging ensures consistent security protocols.
Features
- Designed for standard width stileĀ applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
-
UL10C (Fire) and UL305 (Panic) listed
Product Specs
| ManufacturerĀ | Sargent |
| SKU | 12-WD8606F-96-US32D |
| Grade | Grade 1Ā |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile PushpadĀ |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
42" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Storeroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
37" to 42" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
96" |
Ā
