Description

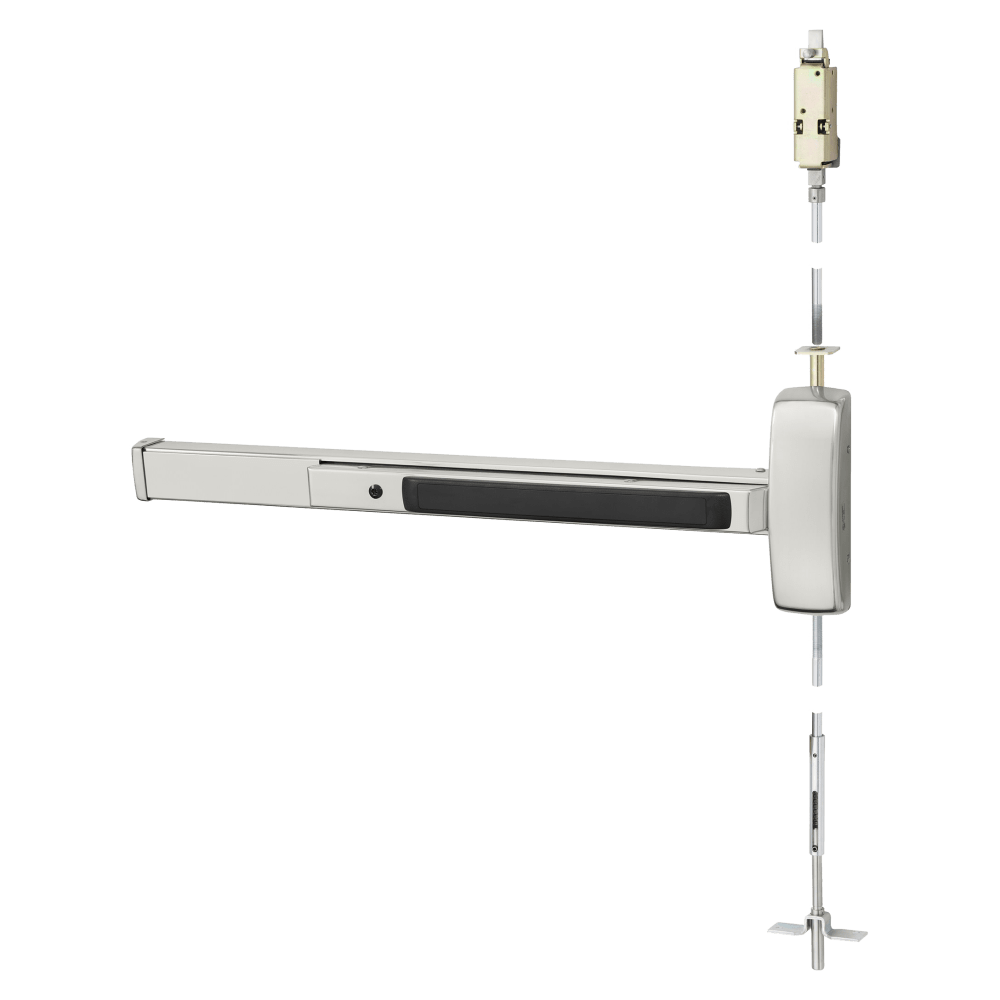

Sargent 12-WD8613J-96-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Classroom Function, For 37-42 Inch Door, 96 Inch Door Height, Less Dogging, Grade 1, Satin Stainless Steel Finish
The Sargent 12-WD8613J-96-US32D Fire Rated Concealed Vertical Rod Exit Device is a Grade 1, heavy-duty solution designed for reliable life-safety performance and a clean architectural appearance. Engineered for 37–42 inch wide doors with a 96 inch door height, this fire-rated exit device features a concealed vertical rod design and wide stile pushpad for smooth, consistent egress in high-traffic commercial and institutional environments. The classroom function provides controlled exterior access while ensuring free exit at all times, making it ideal for schools and secure facilities. Finished in satin stainless steel (US32D) and manufactured without dogging to meet fire door requirements, this device delivers long-term durability, code compliance, and trusted Sargent quality.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
Product Specs
| Manufacturer | Sargent |
| SKU | 12-WD8613J-96-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
42" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Classroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
43" to 48" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
96" |
