Description

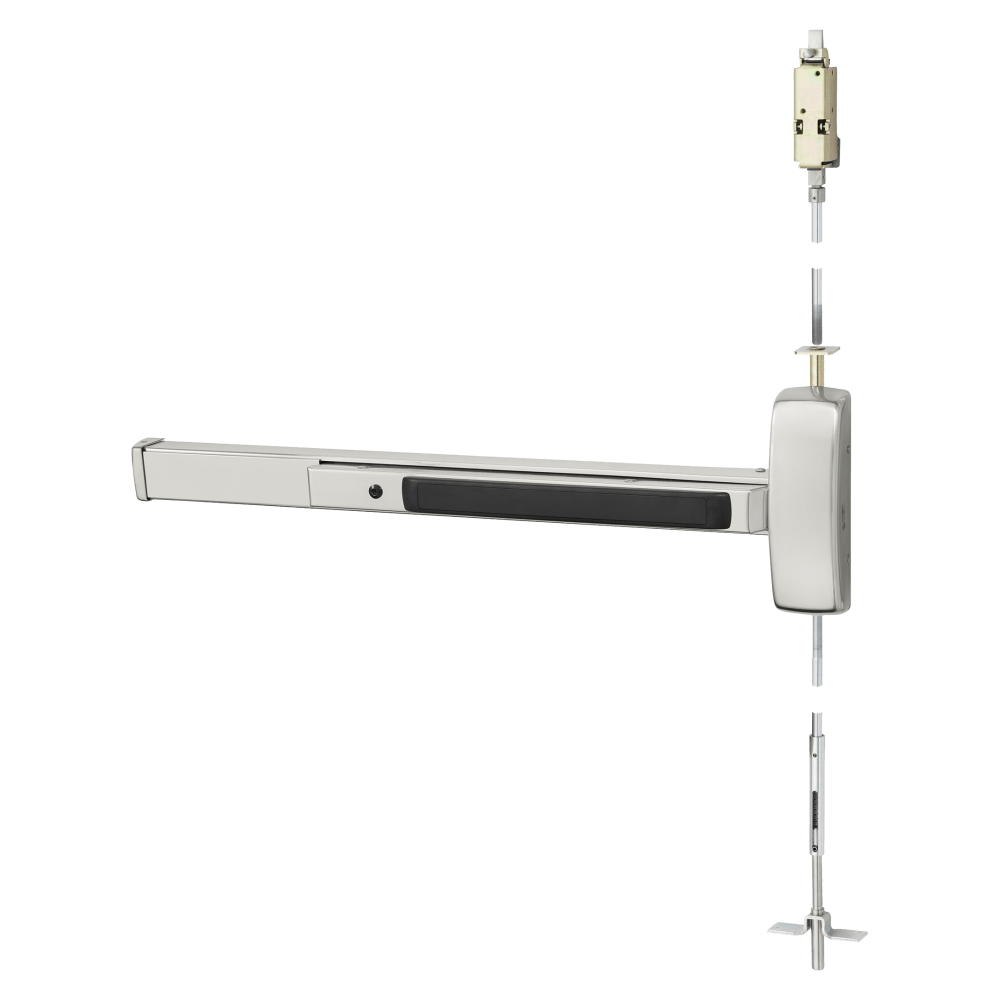

Sargent 12-WD8615J-84-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Passage Function, For 37-42 Inch Door, 84 Inch Door Height, Less Dogging, Grade 1, Satin Stainless Steel Finish
Heavy-duty fire-rated exit device built to commercial specifications for secure emergency egress control. The concealed vertical rod mechanism integrates seamlessly with wide stile pushpad operation, accommodating doorways between 37-42 inches in width and 84 inches tall. Passage function mode enables unrestricted door movement without requiring manual dogging engagement. Grade 1 certification ensures maximum structural integrity and performance reliability in demanding institutional settings. Satin stainless steel construction resists corrosion while maintaining a professional appearance. Fully compliant with fire safety codes for commercial and industrial facilities.
Features
- Designed for standard width stileĀ applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
Product Specs
| ManufacturerĀ | Sargent |
| SKU | 12-WD8615J-84-US32D |
| Grade | Grade 1Ā |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile PushpadĀ |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
42" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Passage |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
37" to 42" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
84" |
