Description

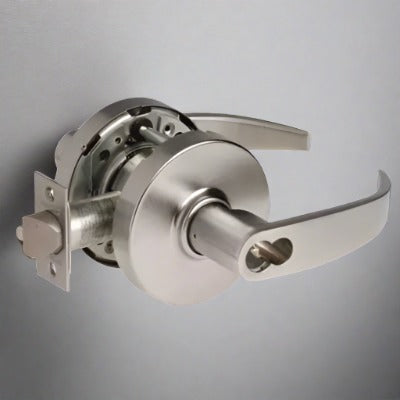

The Sargent 28-60-10G04-LP features a Storeroom or Closet function with a 2-3/4" backset, 4-7/8" strike, and L Rose/P Lever, prepped for a Large Format Interchangeable Core (LFIC). Sargent's 10 Line Lock is ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times making this lock perfect for institutions, schools, office spaces, healthcare facilities, storerooms, and classrooms.
Product Specs
| Vendor | ASSA ABLOY |
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Heavy Duty |
| Limited Warranty | 7 Years |
| Fire Rated | 3 Hours {A} |
Technical Specs
| ANSI Function |
F86 - Storeroom |
| Handing | Not Handed |
| Door Thickness | 1-3/4" - 2" |
| Std. Latch Number | 44491 |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 808 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Combination |
| Product Type | Cylindrical Lock |
