Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Night Latch |
| Device Length | 32" |
| Includes Trim | Yes, PSB |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 24"- 32" |
| Door Thickness | 1 3/4" to 2 1/4" |
| Fire Rated | Yes |
| Product Type | Rim Exit Devices |
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | Yes |
| Burglar Rated | No |
| ADA Compliance | No |

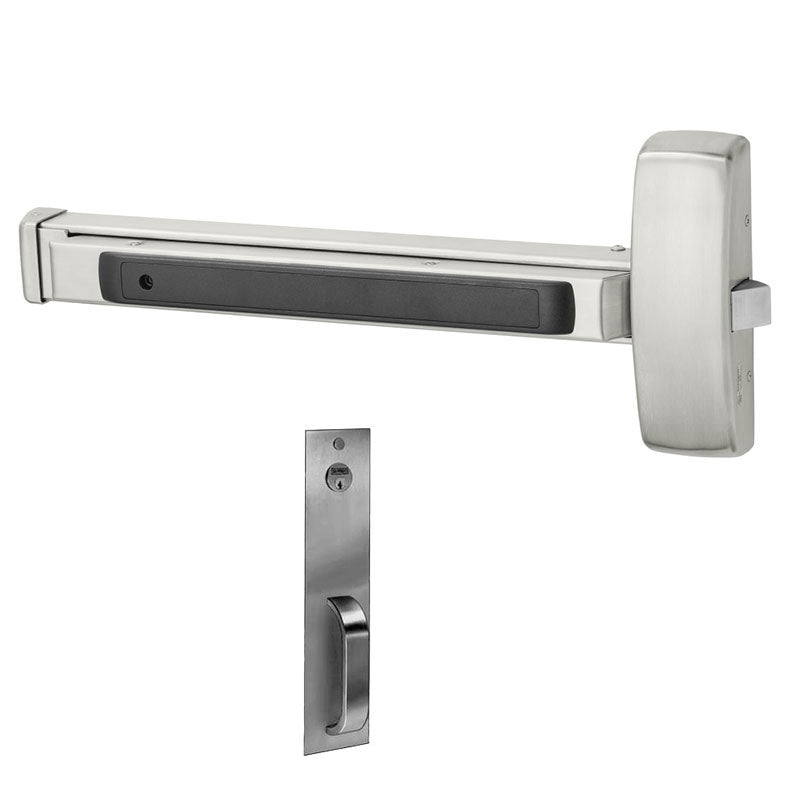

The Sargent 56-12-8804-E-PSB is Fire Rated Rim Exit Device with an Electric Latch Retraction, PSB Pull Trim, Key Retracts Latch Bolt, and has a 24"-32" Bar.
SARGENT Electric Latch Retraction exit device is the perfect choice for high-traffic egress doors that require access control. This non-handed exit device rail is durable and easy to install. It utilizes a latch retraction motor rather than a solenoid, ensuring quiet operation ideal for locations such as conference rooms, theaters, and libraries. Once retracted, the door functions in a push/pull manner. The 56-exit device can be dogged for momentary ingress and egress and is commonly used in conjunction with an automatic door operator. The device can be dogged continuously on fire-rated devices that are tied into the building fire detection system.
