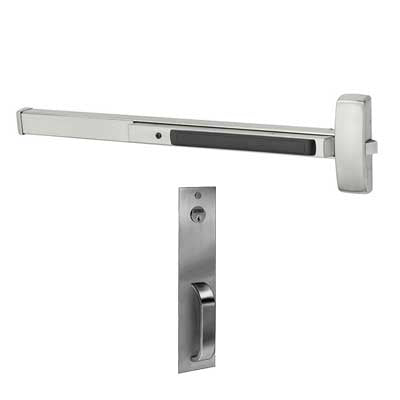

Sargent 56-12-8804-F-PSB (12) Fire Rated Rim Exit Device (56) Electric Latch Retraction, Night Latch Function, 33"-36" Bar, PSB Pull Trim

  • SKU: 56128804FPSBUS32DLHR

Sargent 56-12-8804-F-PSB (12) Fire Rated Rim Exit Device (56) Electric Latch Retraction, Night Latch Function, 33"-36" Bar, PSB Pull Trim

  • SKU: 56128804FPSBUS32DLHR
Sale price$2,691.00/ea
In Stock
In Stock
  • KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
  • 60 - LFIC Sargent Large Format Interchangeable Core - Less Core Disposable Plastic Plug
  • 70 - SFIC Small Format Interchangeable Core - Less Core (Best Arrow Falcon Medeco SFIC)
  • LHR - Left Hand Reverse
  • RHR - Right Hand Reverse
Finish: US32D Satin Stainless Steel (630)
Core Options: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
Handing: LHR - Left Hand Reverse

Technical Specs

Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Night Latch
Device Length 36"
Includes Trim Yes, PSB
Minimum Stile Size 4-3/4"
Door Material Metal or Wood
Door Width 33"- 36"
Door Thickness 1-3/4" to 2-1/4"
Fire Rated Yes
Product Type Rim Exit Devices

Product Specs

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated Yes
Burglar Rated No
ADA Compliance No



The Sargent 56-12-8804-F-PSB is Fire Rated Rim Exit Device with an Electric Latch Retraction, PSB Pull Trim, Key Retracts Latch Bolt, and a 33"-36" Bar.

SARGENT Electric Latch Retraction exit device is the perfect choice for high traffic egress doors that require access control. This non-handed exit device rail is durable and easy to install. It utilizes a latch retraction motor rather than a solenoid, ensuring quiet operation ideal for locations such as conference rooms, theaters, and libraries. Once retracted, the door functions in a push/pull manner. The 56- exit device can be dogged for momentary ingress and egress and is commonly used in conjunction with an automatic door operator. The device can be dogged continuously on fire-rated devices that are tied into the building fire detection system.
