Sargent 56-12-8804-G-ETL (12) Fire Rated Rim Exit Device (56) Electric Latch Retraction, Night Latch Function, 43"-48" Bar, ETL Trim

  • SKU: 56128804GETLUS32DLHR

Sargent 56-12-8804-G-ETL (12) Fire Rated Rim Exit Device (56) Electric Latch Retraction, Night Latch Function, 43"-48" Bar, ETL Trim

  • SKU: 56128804GETLUS32DLHR
Sale price$2,966.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
Handing: LHR - Left Hand Reverse

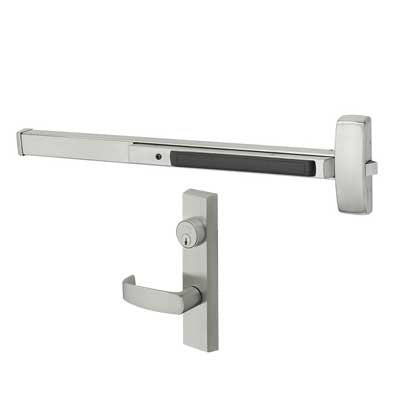

The Sargent 56-12-8804-G-ETL is a Fire Rated Rim Exit Device with an Electric Latch Retraction, ETL Trim, and 43"- 48" Bar.  Select Finishes US10B Oxidized Dull Bronze Or US32D Satin Stainless. Part of the 8800 Series Rim Exit Devices by Sargent.

SARGENT Electric Latch Retraction exit device is the perfect choice for high-traffic egress doors that require access control. This non-handed exit device rail is durable and easy to install. It utilizes a latch retraction motor rather than a solenoid, ensuring quiet operation ideal for locations such as conference rooms, theaters, and libraries. Once retracted, the door functions in a push/pull manner. The 56- exit device can be dogged for momentary ingress and egress and is commonly used in conjunction with an automatic door operator. The device can be dogged continuously on fire-rated devices that are tied into the building fire detection system.

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes
Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Night Latch
Device Length 48"
Hand LHR or RHR
Electric Options Electric Latch Retraction
Dogging Options Less Dogging
Includes Trim Yes
Trim Type Lever
Trim Design Lever with Escutcheon
Includes Cylinder(s) Yes
Cylinder Type Rim
Minimum Stile Size 4-3/4"
Door Material Metal or Wood
Door Width 43" to 48"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices
