Technical Specs
| Function |
05 Entrance or Office
|
| Function Family |
Entrance or Office |
| ANSI Function |
F81- Entrance or Office
|
| Rose/Escutcheon Design |
L Rose
|
| Rose/Escutcheon Dimensions |
3-1/2" |
| Lever |
P Lever |
| Handing |
Non-handed |
| Door Thickness |
1-3/4" to 2" |
| Std. Latch Number |
10-2000 |
| Std. Latch Type |
Deadlatch |
| Std. Latch Backset Dim |
2-3/4" |
| Latch Bore Diameter |
1" |
| Lock Face Size |
1-1/8" x 2-1/4" |
| Bolt Projection |
1/2" |
| Bore Hole Diameter |
2-1/8" |
| Std. Strike Number |
808 |
| Std. Strike Type |
ANSI Curved Lip Strike |
| Std. Strike Height |
4-7/8" |
| Std. Strike Width |
1-1/4" |
| Screws |
Wood/Machine Screws |
| Product Type |
Cylindrical Lock |
Product Specs
| Manufacturer |
Sargent |
| SKU |
60-10XG05-LP |
| Grade |
Grade 1 |
| Installation |
Commercial |
| Origin |
United States |
| Unit of Measure |
Each |
| Base Material |
Bronze |
| UL Listing Type |
ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| ANSI Number |
F81 |
| Limited Warranty |
10 Year Limited Warranty |
| Fire Rated |
3 Hours {A} |
| Burglar Rated |
No |
Sargent 60-10XG05-LB Entrance or Office Function Cylindrical Lock, "L" Rose, "B Lever Design, 2 3/4 Backset, 4 7/8 Strike, "60" LFIC Accepts Large Format Interchangable, Disposable Plastic Core, Grade 1

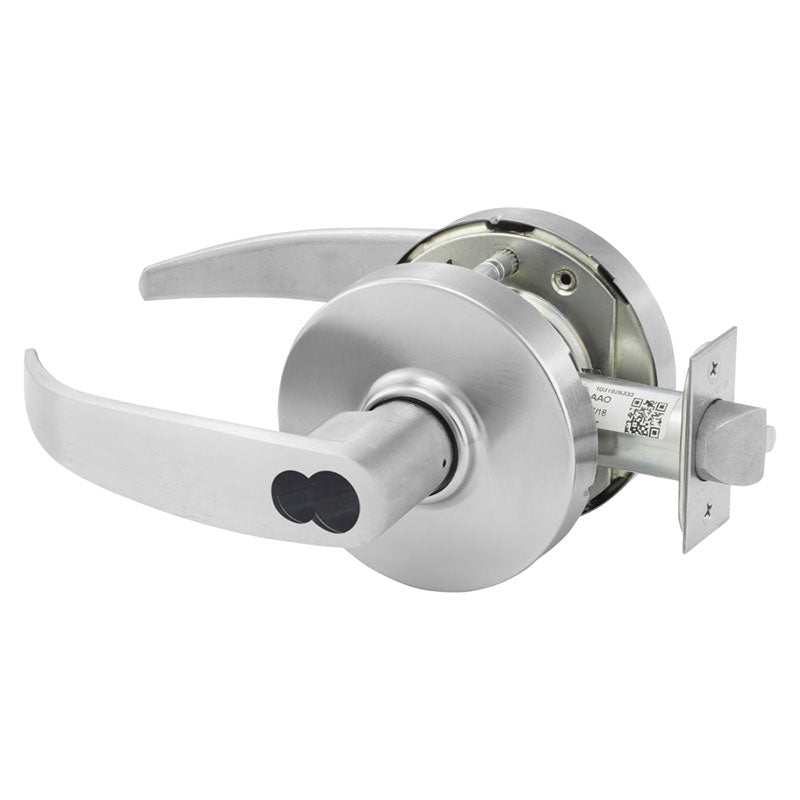

The Sargent 60-10XG05-LP Entrance or Office function lockset has an L Rose, a P Lever, a 2-3/4" Backset, a 4-7/8" Strike, and is Grade 1. The Sargent 60-10XG05-LP is available prepped for "60" LFIC Large Format Interchangeable Core - Sold Less Core.
10X-Line Bored Lever Locks
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Features
- Compatible with several security key systems (Degree, Signature, KESO, etc.)
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
- Innovative push/turn button design prevents damage from door stops and walls
- 26 mechanical functions offered
- Available in 14 finishes with multiple lever designs
- Optional Microshield ® antimicrobial coating available
- Lockbody design supports all cylinder formats - from fixed to interchangeable core
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Complements the look of any design style
- Minimizes inventory stocking requirements
- Simplifies installation in new and retrofit applications
- Integrates with new or existing facility key systems
