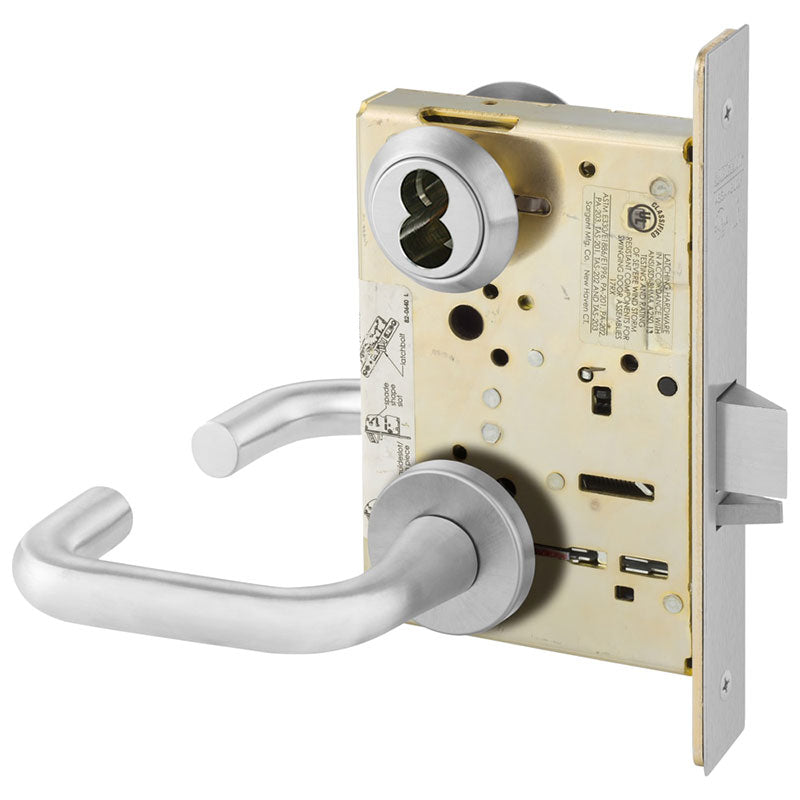

The Sargent 60-8204-LNJ-US26D is a Grade 1 Heavy Duty Storeroom or Closet Function Mortise Lock with an LN Rose, a J Lever, is sold LFIC Prepped, Less Core, and comes in a Satin Chrome Finish. Sargent 60-8204-LNJ-US26D has a 2-3/4" backset and is for use on 1-3/4" thick doors.
| Manufacturer | Sargent |
| SKU | 60-8204 LNJ 26D |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| Application | Complete Lock |
| Base Material | Brass or Bronze |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
Technical Specs
| Function | 04- Storeroom or Closet |
| ANSI Function |
F07 - Storeroom/Exit |
| Lever/Knob Design |
J - Lever |
| Rose/Escutcheon Design |
LN - Rose |
| Cylinder Type |
Sargent LFIC Less Core |
| Handing | Field Reversible |
| Door Thickness | 1 3/4" |
| Lock Face Size | 8" x 1 1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4 7/8" |
| Std. Strike Width | 1 1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
