Technical Specs
| Function | Office Entry |
| ANSI Function |
F04 - Entry/Office |
| Lever/Knob Design |
J - Lever |
| Rose/Escutcheon Design |
LN - Rose |
| Cylinder Type | LFIC Less Core |
| Handing | Field Reversible |
| Door Thickness | 1-3/4 In. |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 8 In. x 1-1/4 In. |
| Bolt Projection | 3/4 In. Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Mortise Lock |
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |

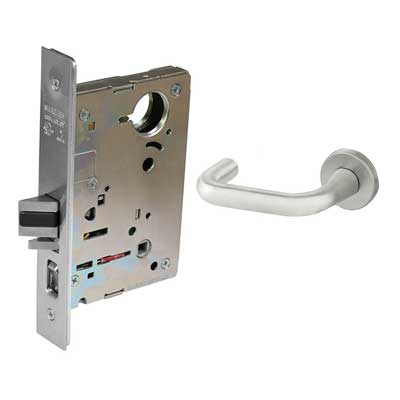

The Sargent 60-8205-LNJ-26D is a Grade 1 Heavy Duty Office or Entry Function Mortise Lock with an LN Rose, a J Lever, LFIC Less Core, Keyed Random, and comes in a Satin Chrome Finish.
Sargent 8205 LNJ 26D has a 2-3/4" backset and is for use on 1-3/4" thick doors.
