Technical Specs
| Function |
37 Classroom
|
| ANSI Function |
F05 - Classroom
|
| Lever/Knob Design |
J - Lever
|
| Rose/Escutcheon Design |
LN - Rose
|
| Cylinder Type |
LFIC Less Core
|
| Handing |
Field Reversible |
| Door Thickness |
1-3/4 In. |
| Std. Latch Type |
Dead Latch (Guarded) |
| Std. Latch Backset Dim |
2-3/4 In. |
| Lock Face Size |
8 In. x 1-1/4 In. |
| Bolt Projection |
3/4 In. Latch |
| Std. Strike Number |
82-0110 |
| Std. Strike Type |
ASA Strike |
| Std. Strike Height |
4-7/8 In. |
| Std. Strike Width |
1-1/4 In. |
| Screws |
Combination |
| Product Type |
Mortise Lock |
Product Specs
| Manufacturer |
Sargent |
| Grade |
Grade 1 |
| Origin |
USA |
| Unit of Measure |
Each |
| Application |
Complete Lock |
| Base Material |
Brass or Bronze |
| BAA Qualified |
Yes |
| Limited Warranty |
10 Years |
| Fire Rated |
2 Hours {B} |

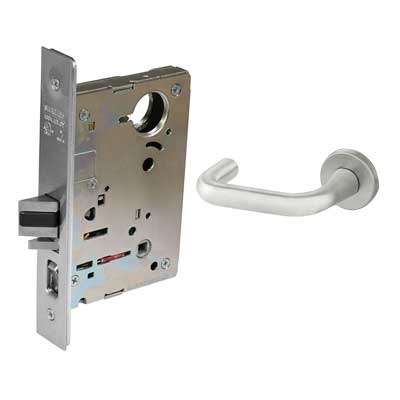

The Sargent 60-8237-LNJ-26D Classroom Mortise Lock Function comes with LFIC Less Core, an LN Rose, and a J Lever in a Satin Chrome Finish.
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards.
