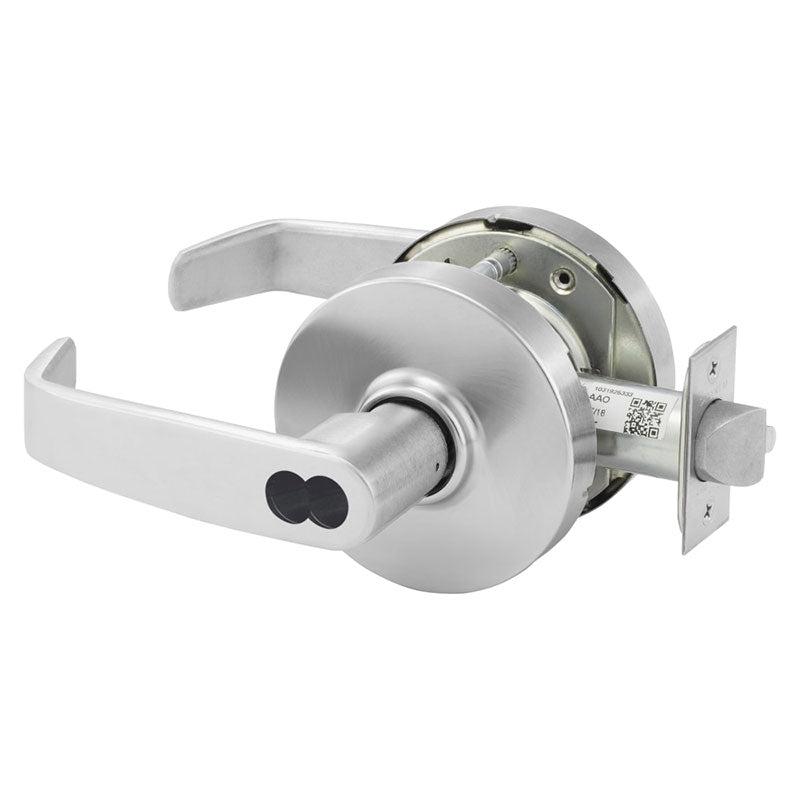

Sargent 70-10XG04-LL Storeroom Function Cylindrical Lock, "L" Rose, "L" Lever Design, 2 3/4 Backset, 4 7/8 Strike, "70" Accepts Small Format Interchangable, Furnished Less Core, Grade 1
The Sargent 70-10XG04-LL Storeroom function lockset has an L Rose, an L Lever, a 2-3/4" Backset, a 4-7/8" Strike, and is Grade 1. The Sargent 70-10XG04-LL is available prepped for a "70" SFIC Small Format Interchangeable Core - Sold Less Core.
10X-Line Bored Lever Locks
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Features
- Compatible with several security key systems (Degree, Signature, KESO, etc.)
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
- Innovative push/turn button design prevents damage from door stops and walls
- 26 mechanical functions offered
- Available in 14 finishes with multiple lever designs
- Optional Microshield ® antimicrobial coating available
- Lockbody design supports all cylinder formats - from fixed to interchangeable core
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Complements the look of any design style
- Minimizes inventory stocking requirements
- Simplifies installation in new and retrofit applications
- Integrates with new or existing facility's key systems
