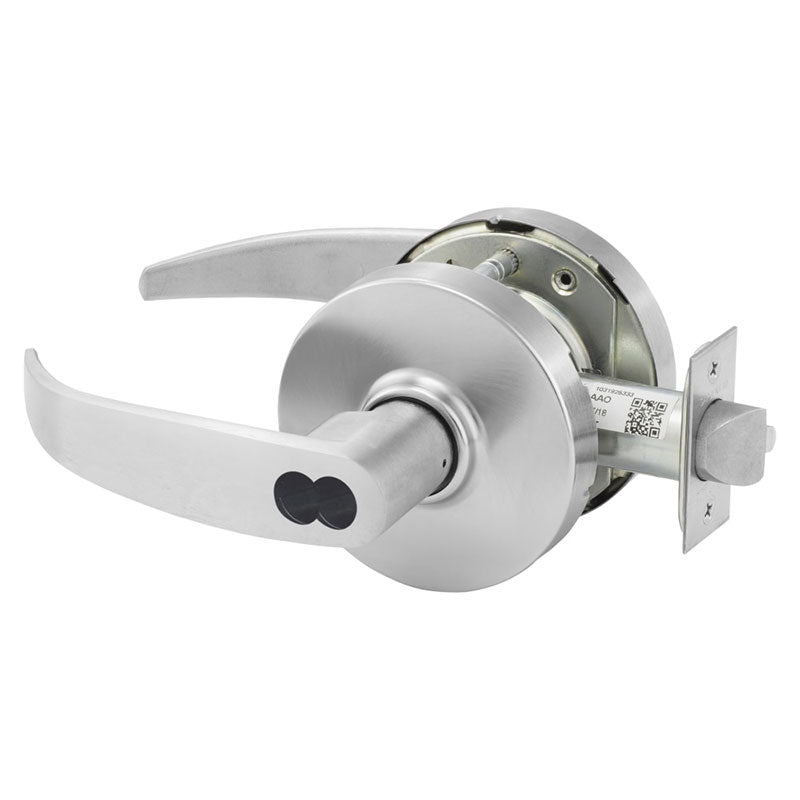

Sargent 70-10XG44-LP Cylindrical Service Station Function Lever Lockset, SFIC Less Core, L Rose, P Lever, Grade 1

Technical Specs

Product Specs

Sargent 70-10XG44-LP Service Station Function Cylindrical Lock, "L" Rose, "P" Lever, 2 3/4 Backset, 4 7/8 Strike, "70" Accepts Small Format Interchangable, Furnished Less Core, Grade 1

The Sargent 70-10XG44-LP Service Station function lockset has an L Rose, a P Lever, a 2-3/4" Backset, a 4-7/8" Strike,  and is Grade 1. The Sargent 70-10XG44-LP has a 70 Option, that is 70 SFIC Small Format Interchangeable core, less core.

10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.

Features

• Compatible with several security key systems (Degree, Signature, KESO, etc.)
• Prevents entry and maintains egresss against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict Service Station
• Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
• Innovative push/turn button design prevents damage from door stops and walls
• 26 mechanical functions offered
• Available in 14 finishes with multiple lever designs
• Optional Microshield ® antimicrobial coating available
• Lockbody design supports all cylinder formats - from fixed to interchangeable core
• Provides maximum resistance to vandalism and other malicious attacks
• Certified above & beyond testing to withstand high volume traffic
• Complements the look of any design style
• Minimizes inventory stocking requirements
• Simplifies installation in new and retrofit applications
• Integrates with new or existing facility key systems
