Technical Specs
| Function |
70-Electromechanical (Fail Safe)
|
| Lever/Knob Design |
ND Lever |
| Rose/Escutcheon Design |
L Rose |
| Cylinder Type |
SFIC Prep, Disposable Core |
| Hand |
Non-handed |
| Door Thickness |
1-3/4" to 2" |
| Latch Number |
Oct-00 |
| Latch Type |
Deadlatch |
| Latch Backset Dim |
2-3/4" |
| Lock Face Size |
1-1/8" x 2-1/4" |
| Bolt Projection |
1/2" |
| Strike Number |
808 |
| Strike Type |
ANSI Curved Lip Strike |
| Strike Height |
4-7/8" |
| Strike Width |
1-1/4" |
| Screws |
Wood/Machine Screws |
| Operating Voltage |
12 or 24 VAC/DC |
| Amp Draw |
250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC |
| Product Type |
Electric Cylindrical Lock |
Product Specs
| Manufacturer |
Sargent |
| SKU |
70-10XG70 LND |
| Grade |
Grade 1 |
| Installation |
Commercial |
| Origin |
United States |
| Unit of Measure |
Each |
| UL Listing Type |
ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| Limited Warranty |
10 Year Limited Warranty |
| Fire Rated |
3 Hours {A} |
| Burglar Rated |
No |

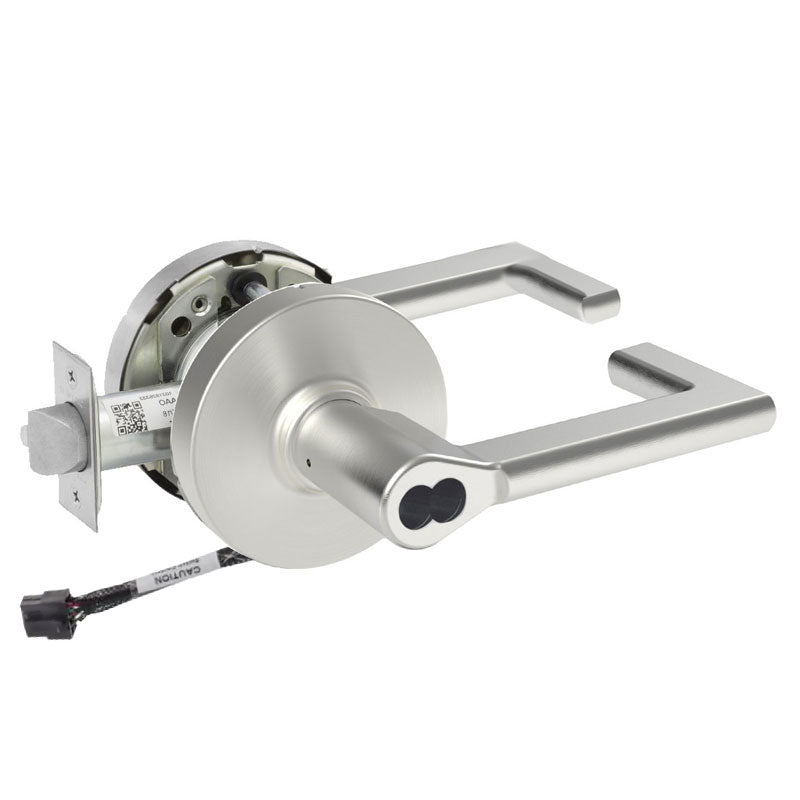

Sargent 70-10XG70-LND-SFIC Cylindrical Electromechanical Lever Lockset, Fail Safe, SFIC Less Core, L Rose, ND Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1
The Sargent 70-10XG70-LND is a Cylindrical Electromechanical Lock with a Fail Safe Function, enabling the outside lever to unlock during a power failure. The 70 Option is 70 SFIC Small Format Interchangeable core, less core. It features an L-shaped rose, a ND-shaped lever, a 2-3/4" backset, and a 4-7/8" strike, and is available in voltage options of 12VDC or 24VDC. Sargent 70-10XG70-LND Locks are field-selectable, fail-safe, and fail-secure.
Key Features:
- 70 Function - Fail Safe
- 70 Option - SFIC Less Core
- 2 3/4" Backset
- 4 7/8" Strike
10X-Line Bored Lever Locks
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Features
- Compatible with several security key systems (Degree, Signature, KESO, etc.)
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
- Innovative push/turn button design prevents damage from door stops and walls
- 26 mechanical functions offered
- Available in 14 finishes with multiple lever designs
- Optional Microshield ® antimicrobial coating available
- Lockbody design supports all cylinder formats - from fixed to interchangeable core
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Complements the look of any design style
- Minimizes inventory stocking requirements
- Simplifies installation in new and retrofit applications
- Integrates with new or existing facility key systems
